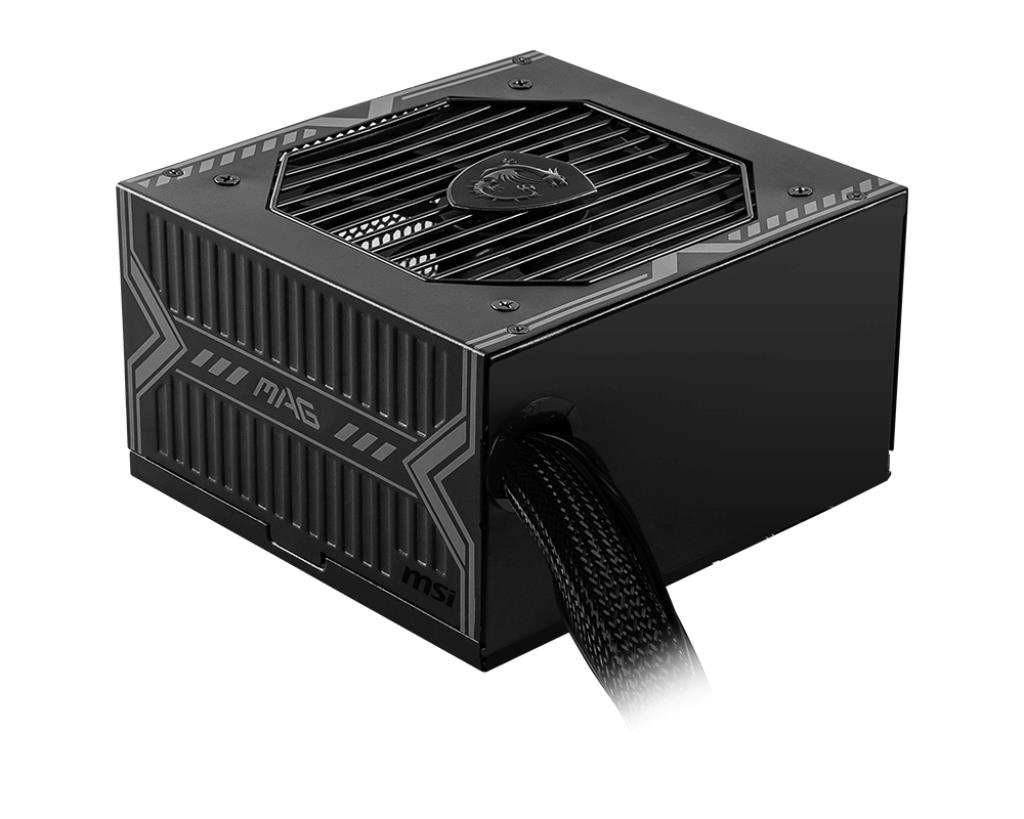

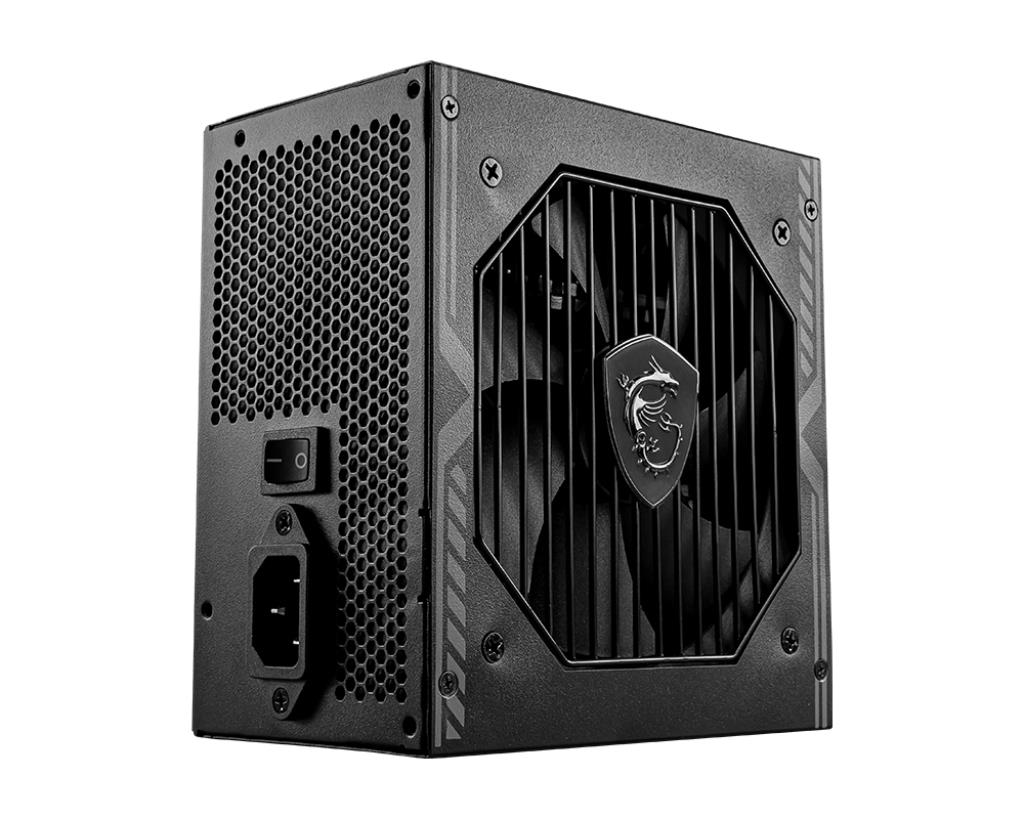

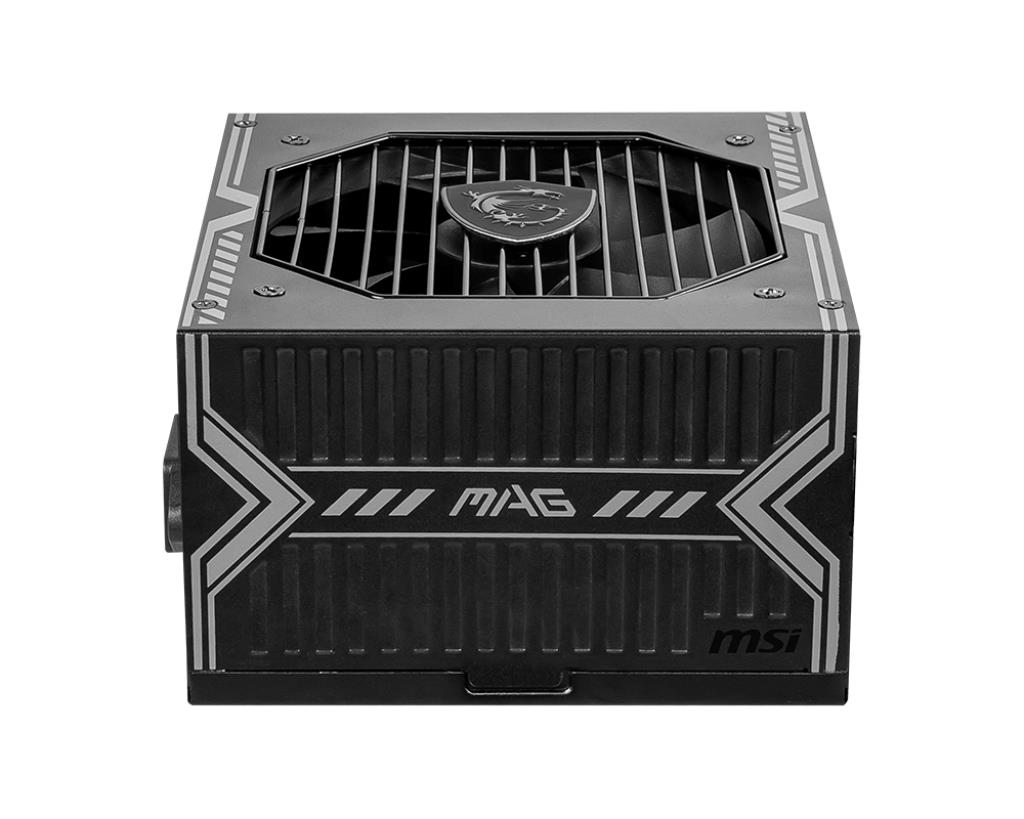

MSI MAG A750BN PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Package width: 150 mm, Package depth: 140 mm, Package height: 86 mm
Spetsifikatsioon
Model name
MAG A750BN PCIE5
AC-sisendpinge
100 - 240 V
AC-sisendsagedus
50/60 Hz
Maksimaalne sisendvool (110 V juures)
10 A
Maksimaalne sisendvool (220 V juures)
5 A
Võimsusteguri korrigeerimise (PFC) tüüp
Aktiivne
Kombineeritud võimsus (+3,3 V)
120 W
Kombineeritud võimsus (+12 V)
750 W
Kombineeritud võimsus (+5 V)
120 W
Kombineeritud võimsus (-12 V)
3.6 W
Kombineeritud võimsus (+5 Vsb)
12.5 W
Maksimaalne väljundvool (+3,3 V)
20 A
Maksimaalne väljundvool (+12 V)
62.5 A
Maksimaalne väljundvool (+5 V)
20 A
Maksimaalne väljundvool (-12 V)
0.3 A
Maksimaalne väljundvool (+5 Vsb)
2.5 A
Toite kaitsefunktsioonid
Lühis/Ülepinge/Ülevõimsus/Ülevool
Emaplaadi toitepistmik
24-pin ATX
Välisseadmete (Molex) toitepistmikud (4 kontakti)
2
EPS toitepistik (4+4 pinn)
Jah
PCI Expressi toitepistmikud (6 + 2 kontakti)
2
PCI Expressi toitepistikud (16 kontaktiga)
1
ATX-toitepistmik (24 kontakti)
Jah
Flopidraivi toitepistmik
1
Kaabelduse tüüp
Mittemodulaarne
80 PLUS sertifikaat
80 PLUS Bronze
Toiteploki (PSU) standard
ATX
Ventilaatori läbimõõt
120 mm
Ventilaatorite arv
1 ventilaator(id)
ELKO Verified Logistics Data
ELKO Internal Logistics Data
Shipping Box Weight
14.68 kg
Shipping Box Height
23 cm
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

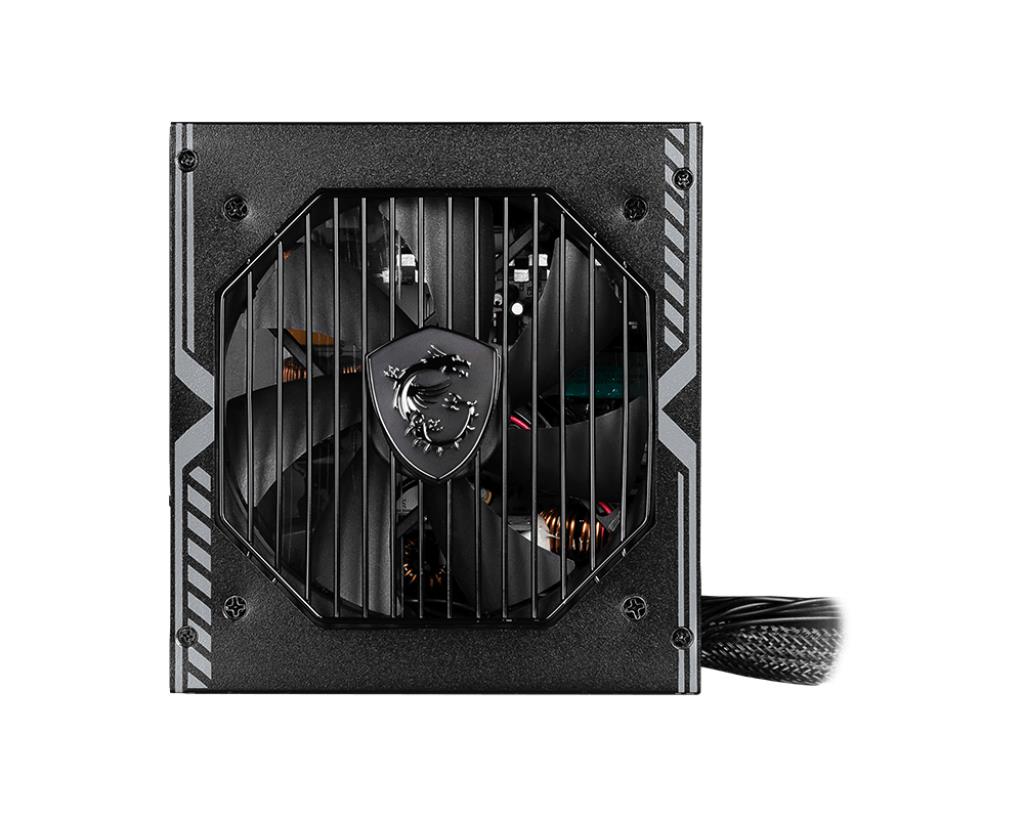

120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
Toodete saadavus võib erineda sõltuvalt ELKO turustuspiirkonnast.
