CASE PSU ATX 1200W/DARK POWER 14 BP021EU BE QUIET
ELKO kood
1450705
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/15b8d5ca-7b11-40e4-aeea-6397409d64ba.Jpeg
CnCode
85044095
Unit Calculated Weight
4.99
Unit Calculated Volume
0.01318
Shipping Box Width
37.4
Shipping Box Depth
53.2
Shipping Box Height
26.5
Shipping Box Weight
19.95
Units per Shipping Box
4
Units per Pallet
0
Screws included
Y
Cable ties included
Y
Shipping (inner) case net weight
20140
Shipping (inner) case length
528
Shipping (inner) case width
368
Shipping (inner) case height
260
Products per shipping (inner) case
4
Sustainability certificates
ENERGY STAR
Sustainability certificates
ErP
Sustainability certificates
Triman
Manual languages
DEU
Manual languages
ENG
Manual languages
ESP
Manual languages
FRE
Manual languages
POL
Manual languages
RUS
Manual languages
UKR
Manual languages
CHI (SIMPL)
Manual languages
ITA
Manual languages
JPN
Manual languages
THA
Package width
230
Package depth
126
Package height
355
Package weight
3700
Manual
Y
Weight
2300
Width
150
Depth
175
Height
86
Compliance certificates
RoHS
Compliance certificates
CB
Compliance certificates
WEEE
Compliance certificates
cTUVus
Compliance certificates
UKCA
Compliance certificates
Federal Communications Commission (FCC)
Compliance certificates
TÜV mark
Operating temperature (T-T)
0 - 40
Fan speed
0 - 2100
On/off switch
Y
Cooling type
Active
Product colour
Black
Fan diameter
135
Number of fans
1

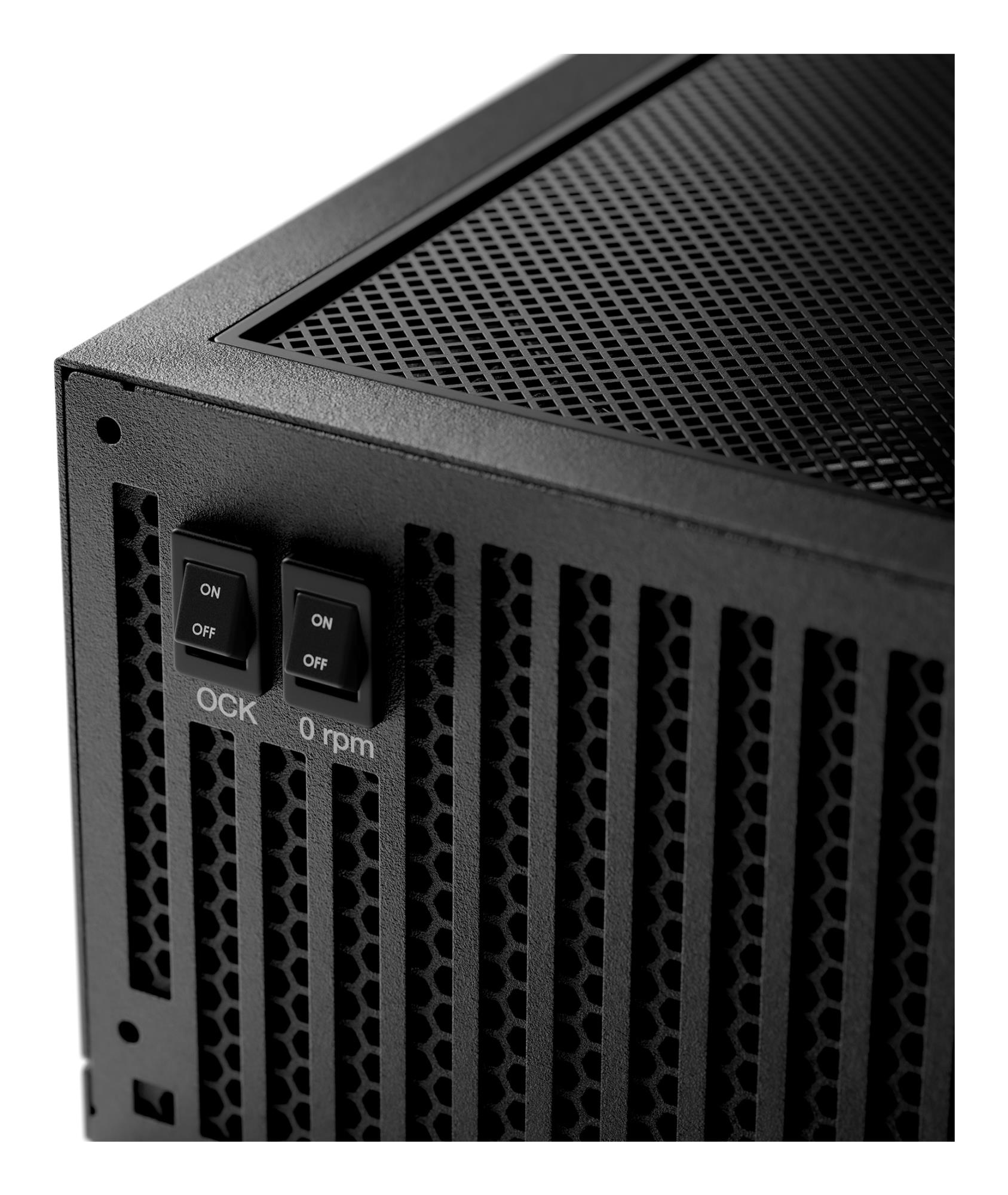

On/off fan switch
Y
EPS version
2.92
80 PLUS certification
80 PLUS Titanium
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Mean time between failures (MTBF)
100000
Bearing technology
FDB

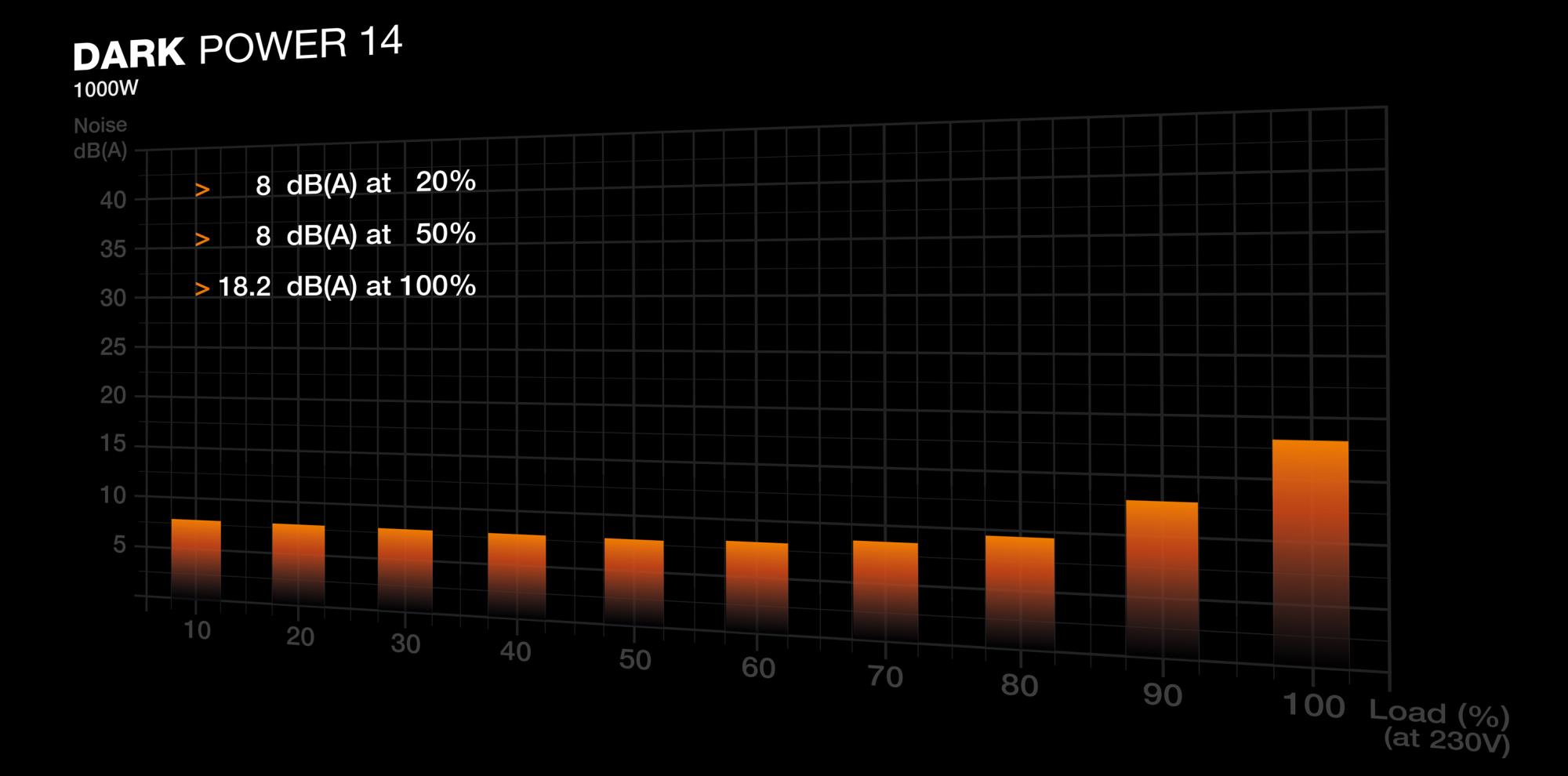

Noise level
21.1

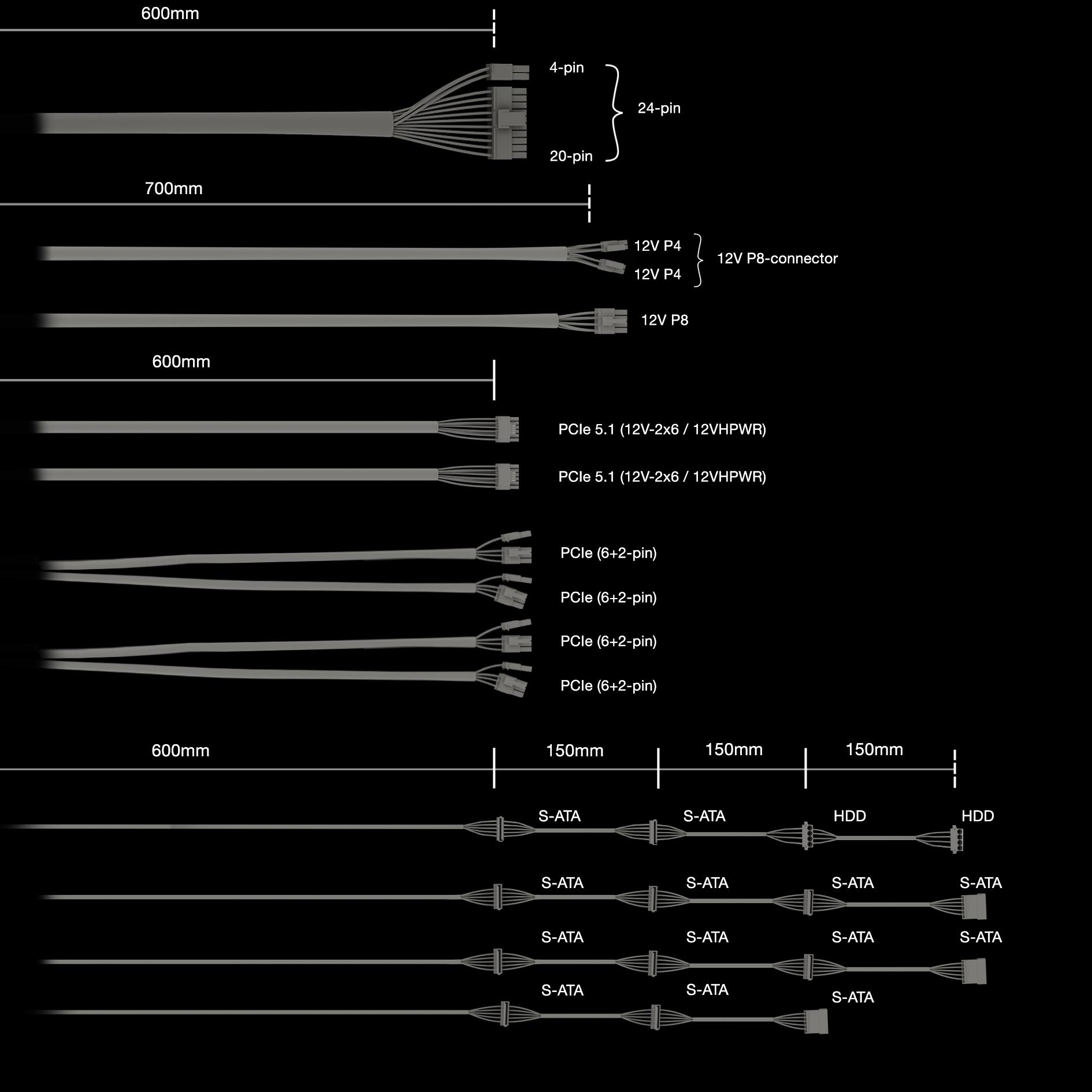

CPU power cable length
700
EPS power connector (8-pin)
Y
Motherboard power cable length
600
SATA power cable length
600
SATA power cable length
750
SATA power cable length
900
SATA power cable length
1050
Peripheral (Molex) power cable length
900
Peripheral (Molex) power cable length
1050
PCI Express power cable length
600
EPS power connector (4+4 pin)
Y
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
13
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Y
ATX power connector (20+4 pin)
Y
Cabling type
Fully-Modular
PCI Express connector
Y
Number of SATA power cables
4
PCI Express power connectors (12-pin)
2
Number of +12V rail(s)
4
Max output current (+12V3)
45
Max output current (+12V4)
45
Total power
1200
AC input voltage
100 - 240
AC input frequency
50/60
Power factor
0.98
Combined power (+3.3V)
120
Combined power (+12V)
1200
Combined power (+5V)
120
Max output current (+3.3V)
25
Max output current (+5V)
24
Max output current (-12V)
0.5
Max output current (+5Vsb)
3
Hold time
19.5
Efficiency
93.1
Power protection features
Over current
Power protection features
Over voltage
Power protection features
Overheating
Power protection features
Short circuit
Power protection features
Under voltage
Power protection features
Overload
Power protection features
Surge & inrush protection (SIP)
Peak power
1300
Maximum input current (@110V)
10
Max output current (+12V1)
33
Max output current (+12V2)
33
Maximum input current (@220V)
5
