CASE PSU ATX3.1 1000W/G9P.RS1000G.B000.EU LIAN LI

ELKO kood
1446047
Available in Black and White
6 Configurations to Suit Your Build

Available in Black and White, with both 1200W and 1000W models. Users can choose between the standard version or the upgraded edition with a RS Hub for greater flexibility.

MULTIPLE CERTIFICATIONS
Built as a Gold-standard power supply, the RS Series surpasses expectations.
During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads.

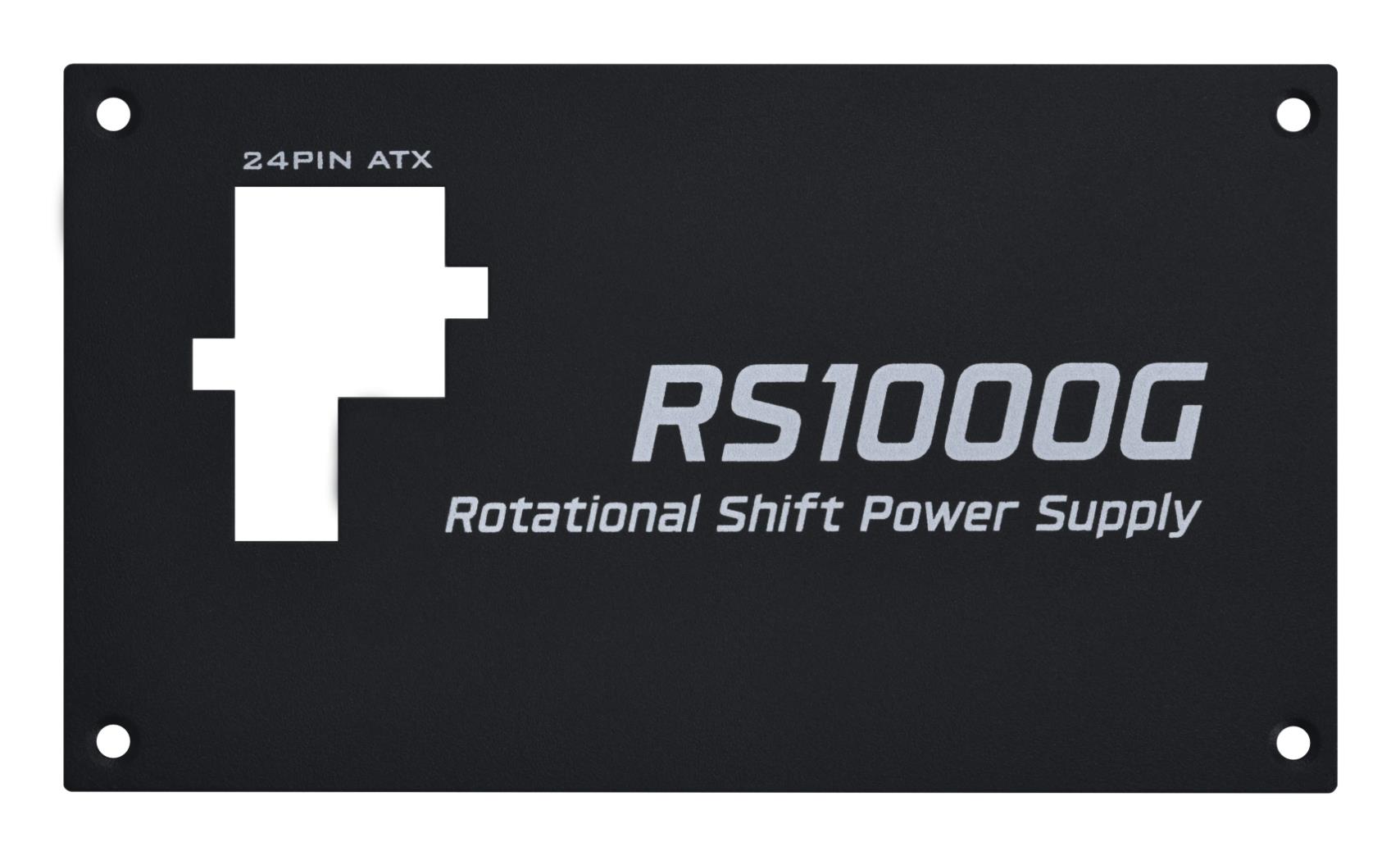

TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY
The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.

ROTATABLE AC INLET
Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations.

Flexible Cable Routing with Dual-Sided 20+4 Pin
The dual-sided 20+4 Pin output design allows cable routing from both sides, making installation cleaner and easier in any configuration.

PREMIUM INDUSTRIAL-GRADE CAPACITORS FOR UNMATCHED RELIABILITY
Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on.

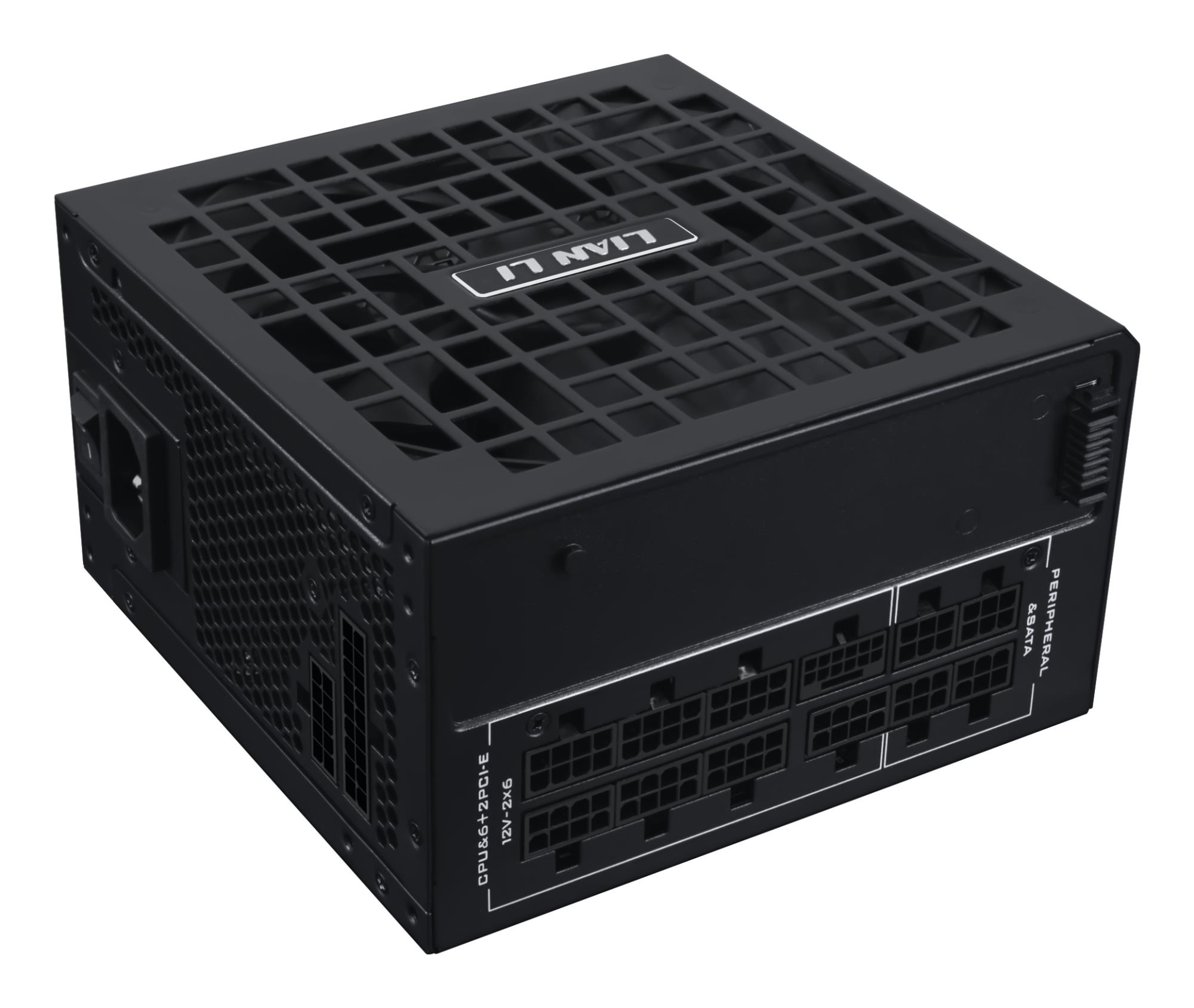

COMPACT SIZE, POWERFUL COOLING
With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience.

LIAN LI Exclusive Dual-Color 12V-2×6 Cable
Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.

Braided-Textured Cable for Aesthetic Appeal
The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics.

SHORTEN YOUR CABLES, PERFECT YOUR BUILD
These ultra-flexible flat cables, combined with magnetic clips that secure the folds, let you manage excess length, making them ideal for builds that require shorter CPU or PCIe cables. Perfect for back-connect motherboards or side-mounted PSU setups, they help keep your layout neat and organized.

Protective Dust Cover for 18+10 Pin Output
Equipped with an insulated dust cover on the 18+10 pin output to protect against foreign objects and ensure safe, reliable operation.

All Essential Cables Included
The RS Series comes with a complete set of high-quality modular cables right out of the box. Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/873f4bd6-eb63-48b5-8ee8-e7e8745b0313.Jpeg
CnCode
85044095
Unit Calculated Weight
4.05
Unit Calculated Volume
0.01099
Units per Shipping Box
1
Model name
EDGE Platinum 1000
Width
86
Depth
150
Height
150
Operating temperature (T-T)
0 - 40
Number of fans
1
Fan diameter
135
Fan speed
0 - 1600
Product colour
Black
Noise level
36.21
Bearing technology
FDB
Mean time between failures (MTBF)
100000
80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
2
Cabling type
Fully-Modular
Motherboard power cable length
620
Peripheral (Molex) power cable length
500
PCI Express power cable length
650
CPU power cable length
700
ATX power connector (20+4 pin)
Y
AC input frequency
50/60
Input current
8 - 15
AC input voltage
100 - 240
Combined power (+3.3V)
100
Combined power (+12V)
1200
Combined power (+5V)
100
Combined power (+5Vsb)
100
Total power
1000
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
Power protection features
Surge & inrush protection (SIP)
Power protection features
No load operation
Power protection features
Under temperature
Power Factor Correction (PFC) type
Active
