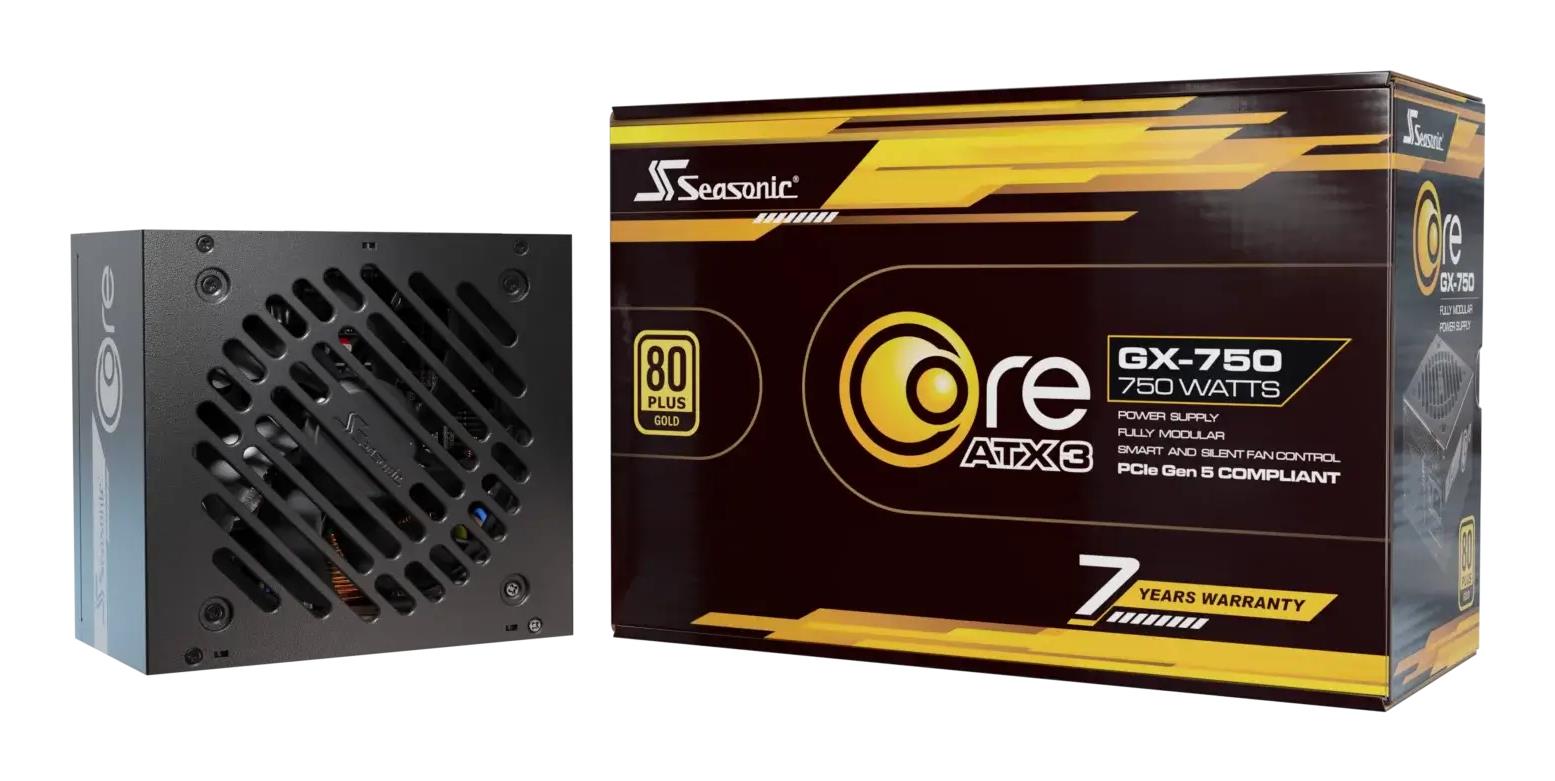

CASE PSU ATX 750W/CORE GX-750 SEASONIC
ELKO kood
1435279
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

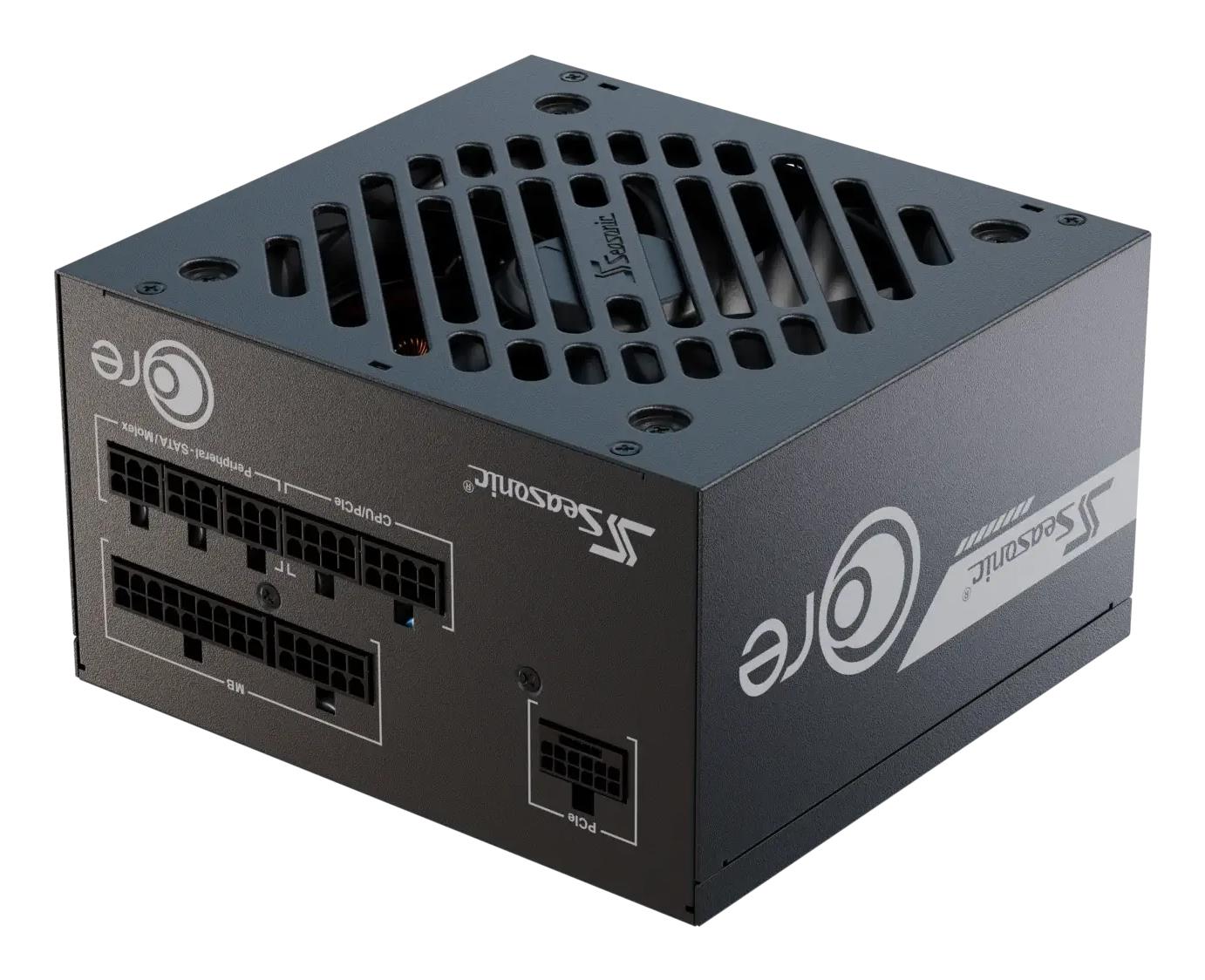

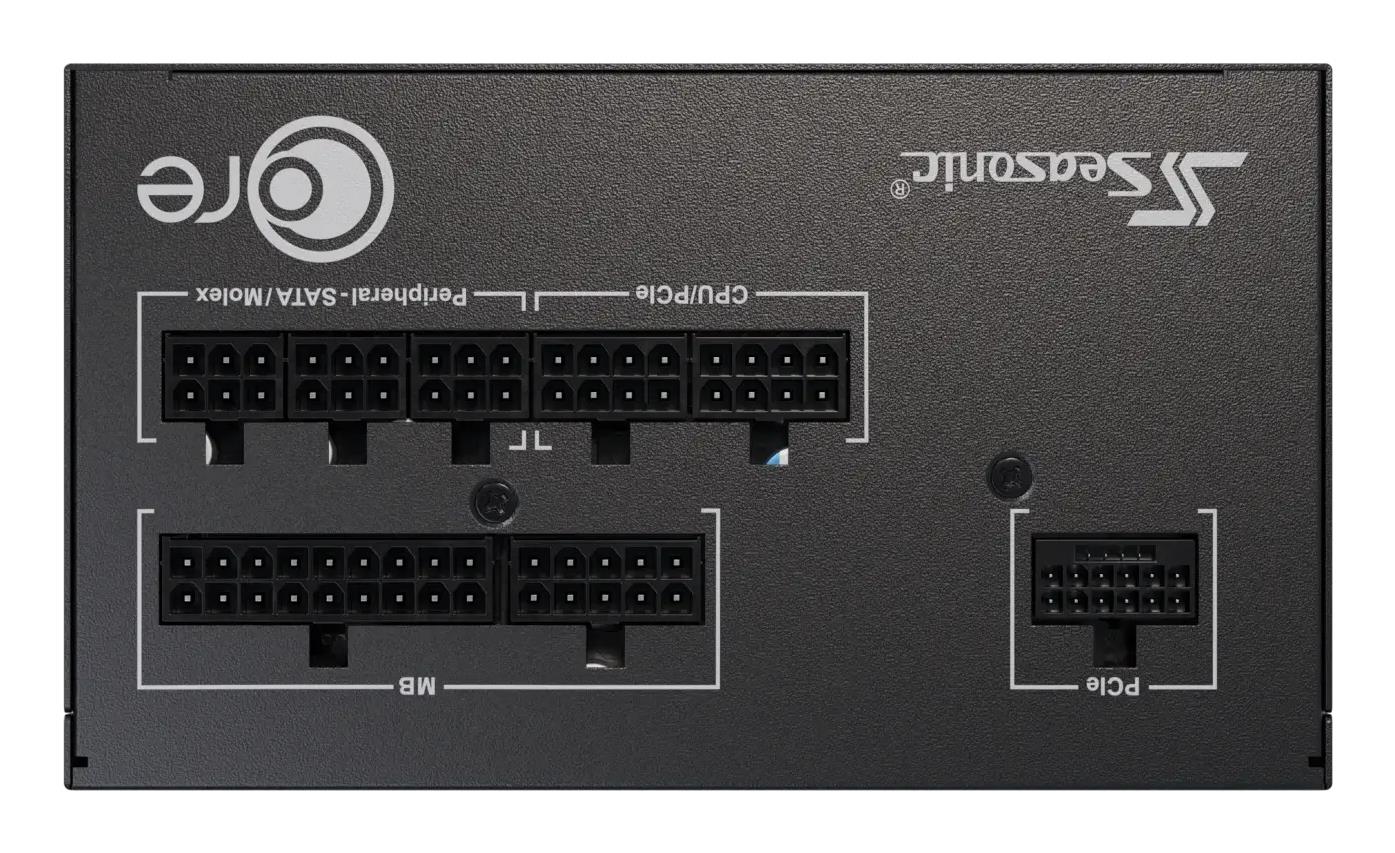

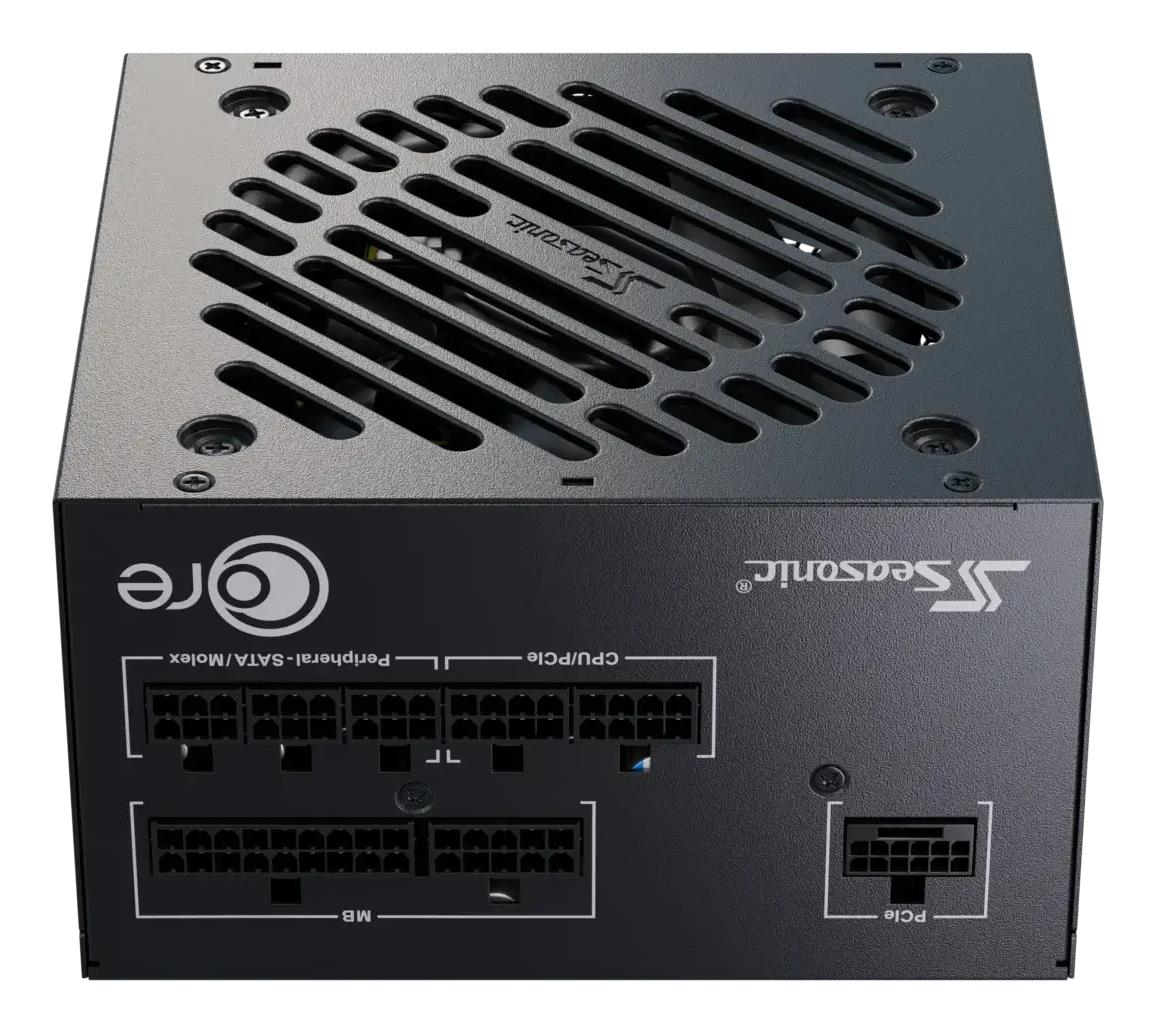

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/722aed24-c65f-4cba-816f-7cbc0ca0be0e.Jpeg
CnCode
85044095
Unit Calculated Weight
3.12
Unit Calculated Volume
0.0077501
Shipping Box Width
30.5
Shipping Box Depth
60.5
Shipping Box Height
21
Shipping Box Weight
15.6
Units per Shipping Box
5
Model name
CORE GX ATX 3.1
Package type
Box
Width
150
Depth
140
Height
86
Cables included
AC,Peripheral (Molex) to SATA 3.3,CPU,PCIe,SATA
Certification
BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Operating temperature (T-T)
0 - 50
Product colour
Black
Fan diameter
120
Number of fans
1
Cooling type
Active
On/off switch
Y
80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.1
Mean time between failures (MTBF)
100000
Cabling type
Fully-Modular
Number of PATA power connectors
2
Total power
750
AC input voltage
100 - 240
AC input frequency
50/60
Input current
9
Combined power (+3.3V)
100
Combined power (+12V)
744
Combined power (-12V)
3.6
Combined power (+5Vsb)
15
Max output current (+3.3V)
20
Max output current (+12V)
62
Max output current (-12V)
0.3
Max output current (+5Vsb)
3
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
Power protection features
Over total voltage
