CASE PSU ATX 500W/PRIME-PX-500 SEASONIC
ELKO kood
1427975

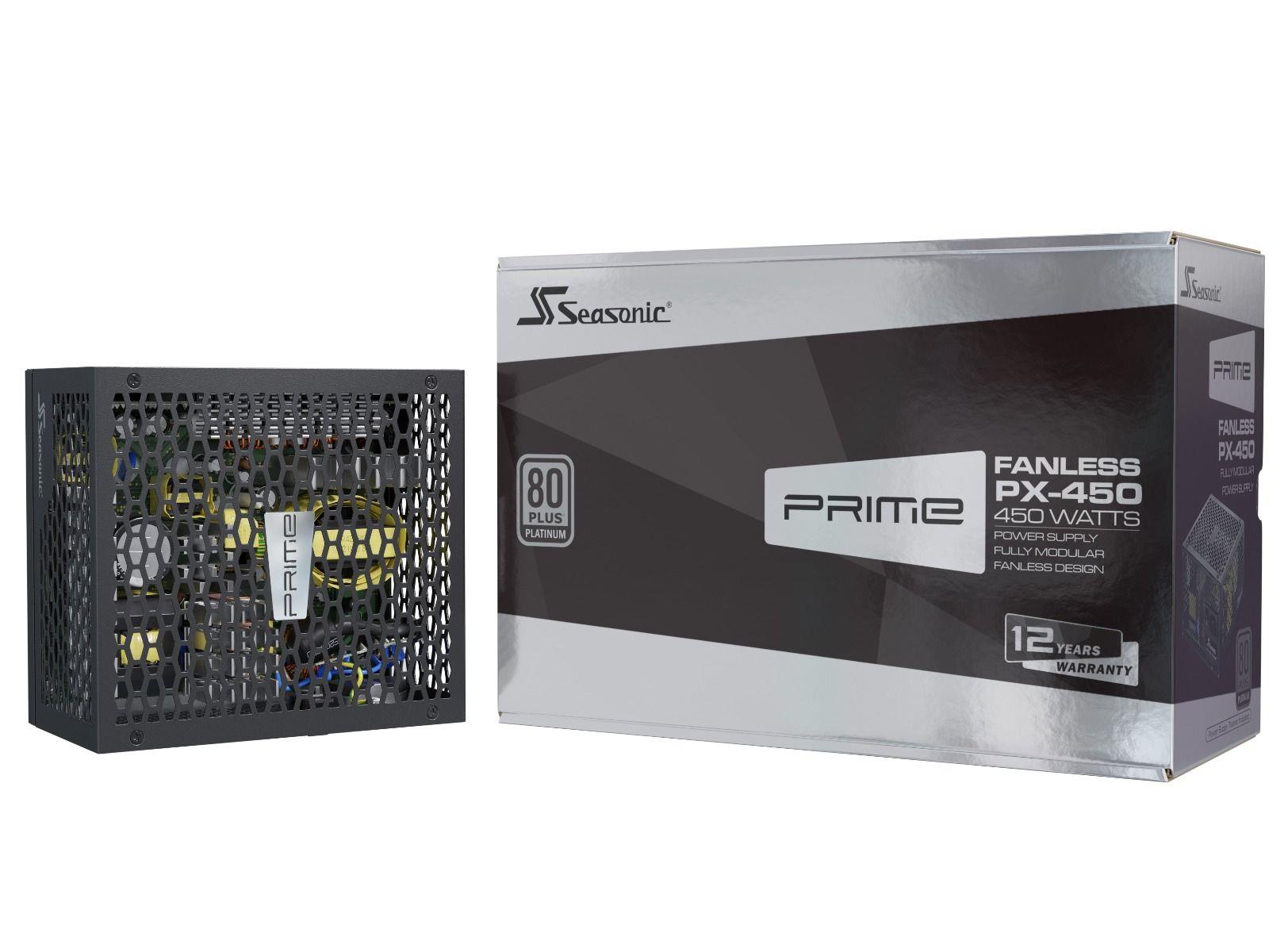

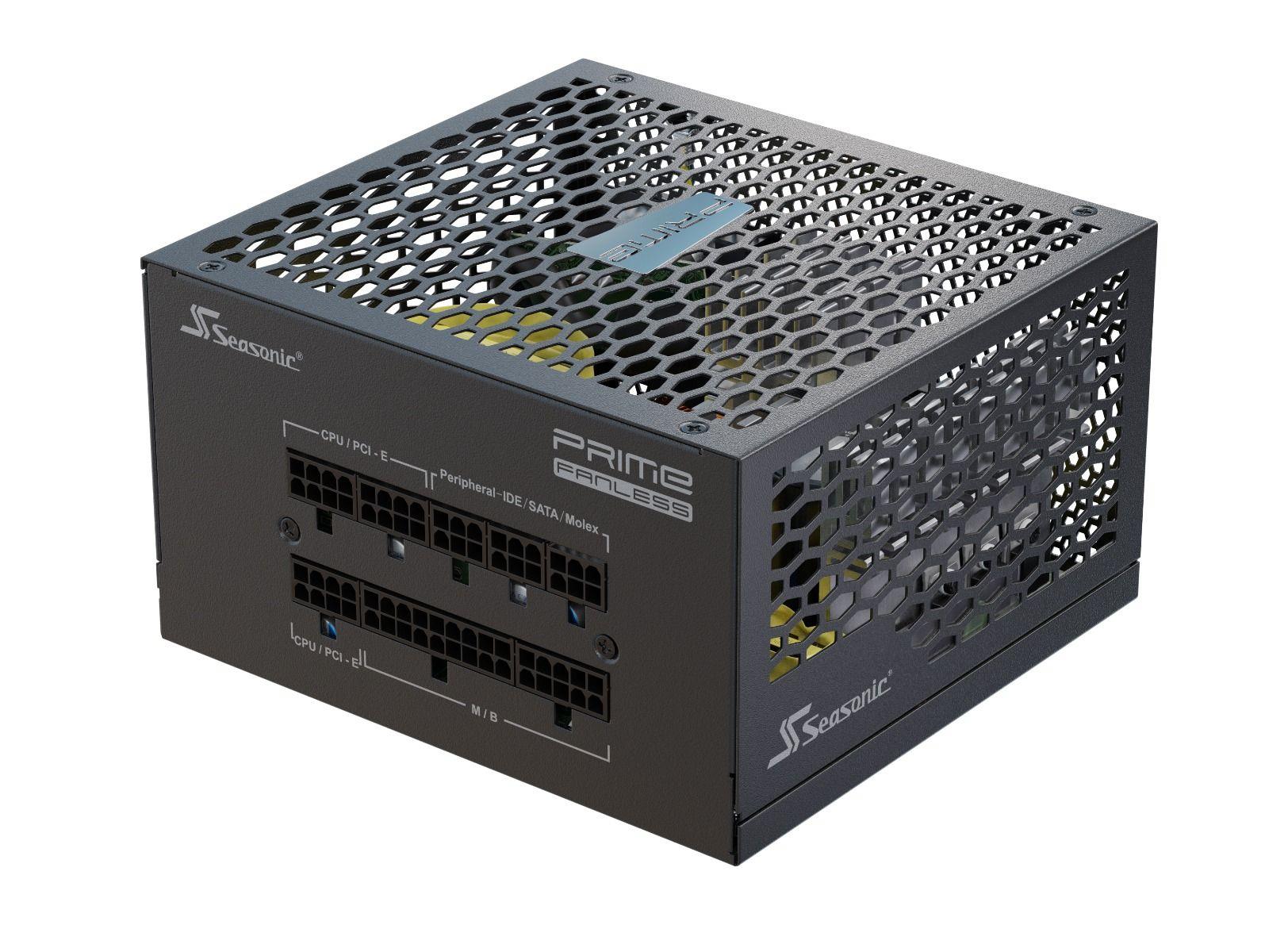

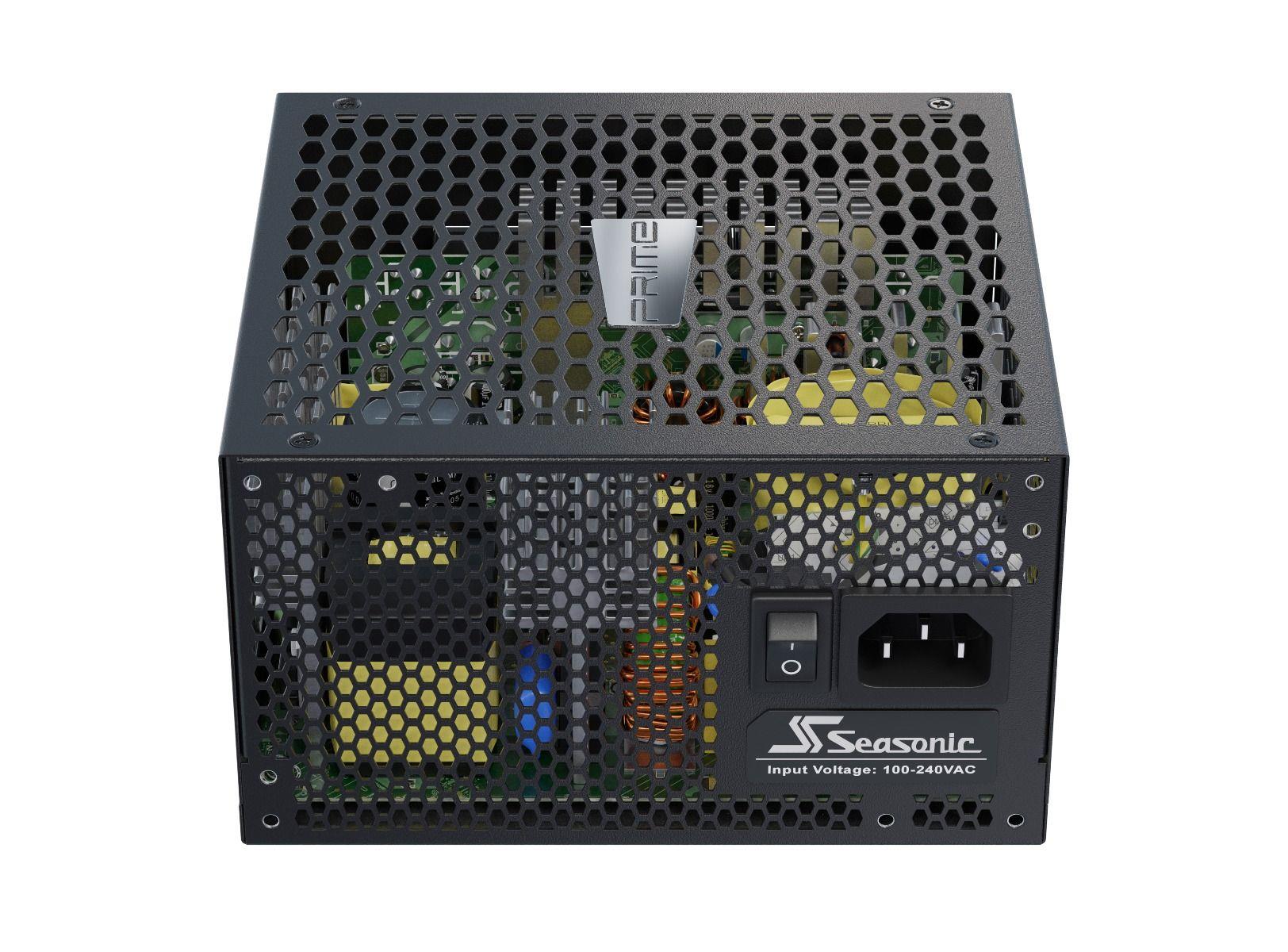

Seasonic PRIME Fanless PX 500W (PRIME-PX-500)
The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Platinum
The PRIME Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

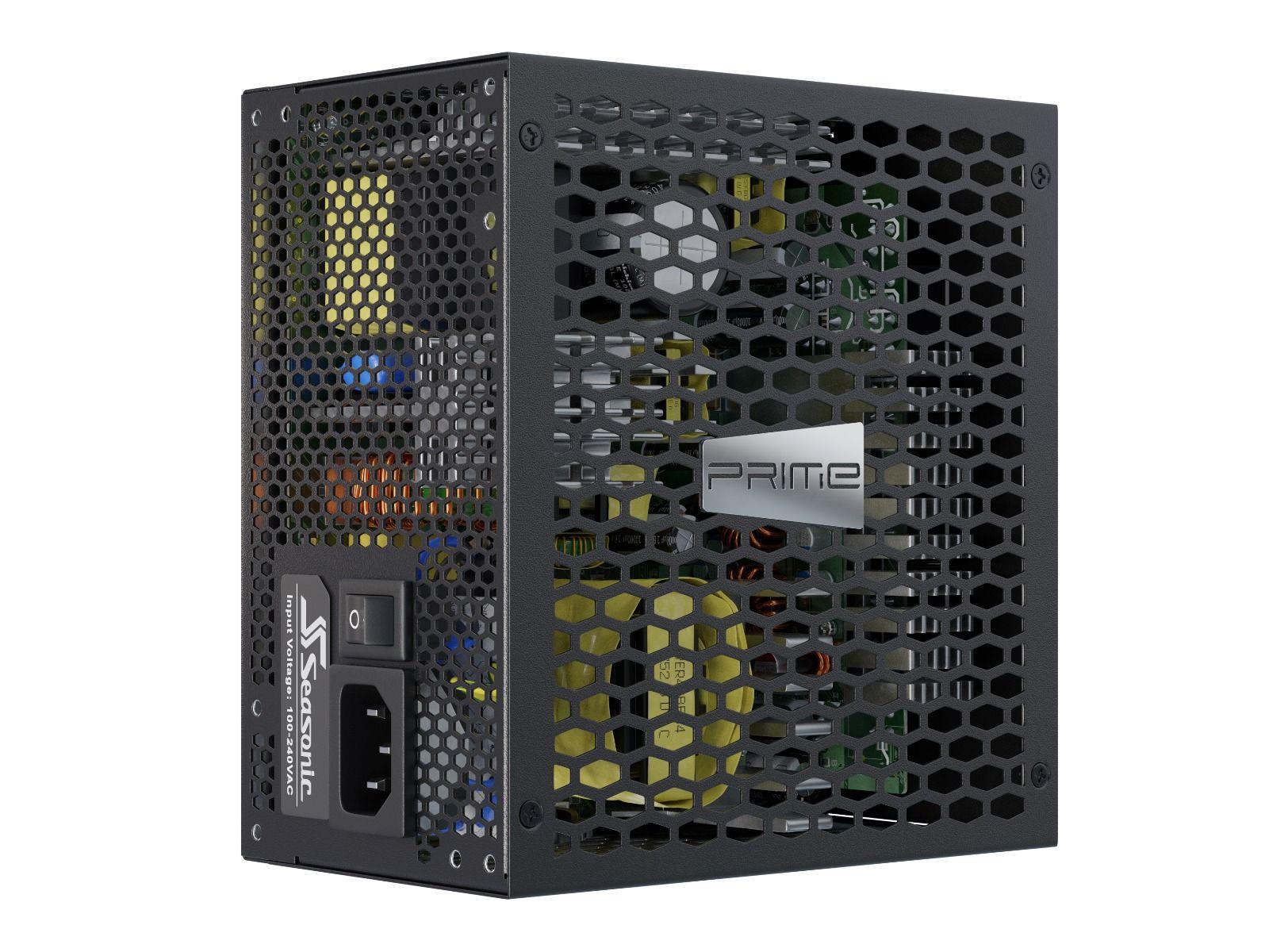

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Platinum
The PRIME Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/922c4d5c-ff2c-45a2-aa5b-970574896d91.Jpeg
CnCode
85044095
Unit Calculated Weight
2.87
Unit Calculated Volume
0.007527
Shipping Box Width
20.7
Shipping Box Depth
60.2
Shipping Box Height
30.2
Shipping Box Weight
14.35
Units per Shipping Box
5
Model name
PRIME Fanless PX
Sustainability certificates
ENERGY STAR
Package type
Box
Width
150
Depth
140
Height
86
Compliance certificates
RoHS
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Operating temperature (T-T)
0 - 50
Product colour
Black
Fan diameter
135
Number of fans
1
On/off switch
Y
Cooling type
Passive
Supported motherboard form factors
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
Power supply unit (PSU) form factor
ATX
Mean time between failures (MTBF)
150000

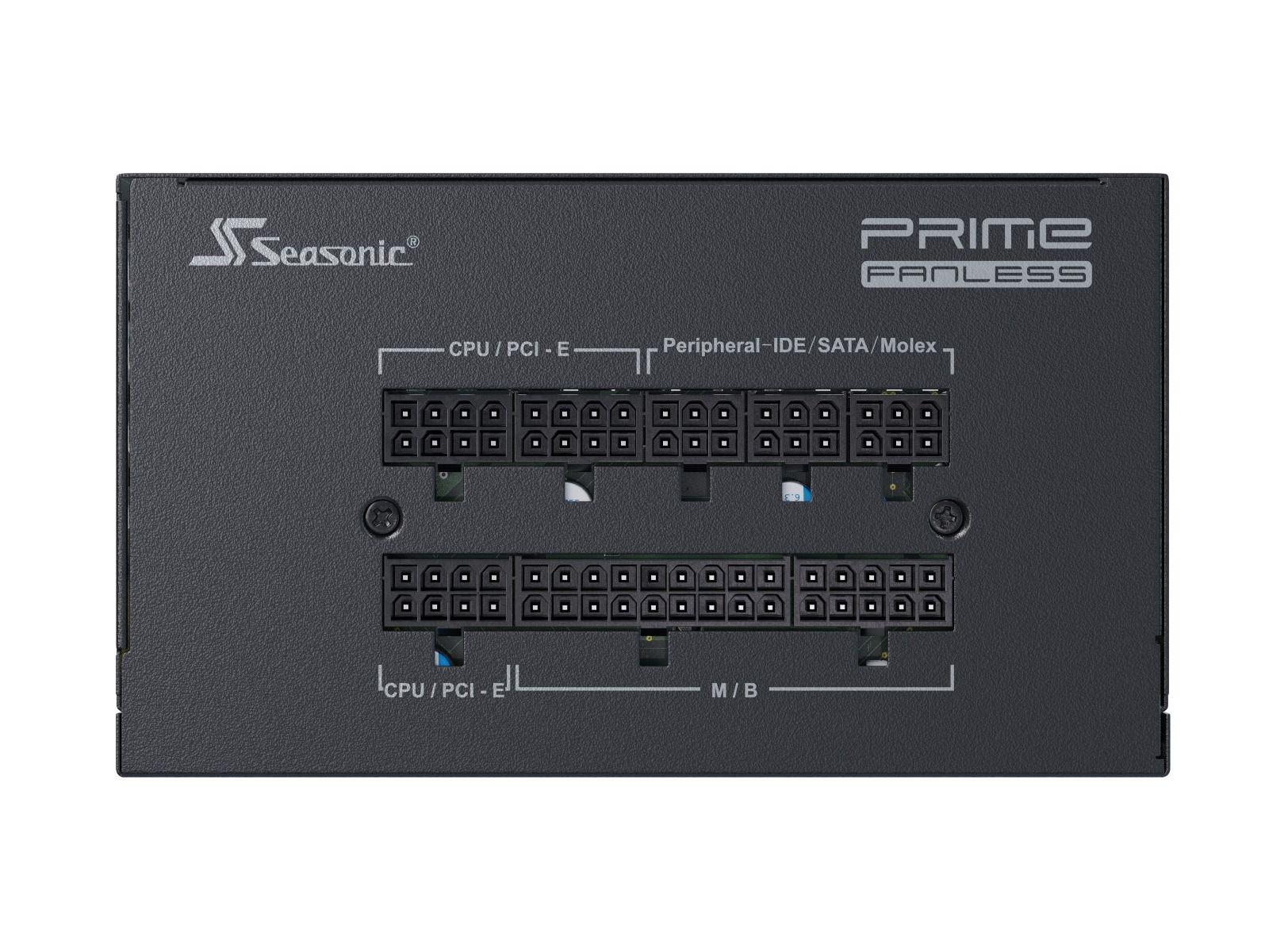

Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
2
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2
Cabling type

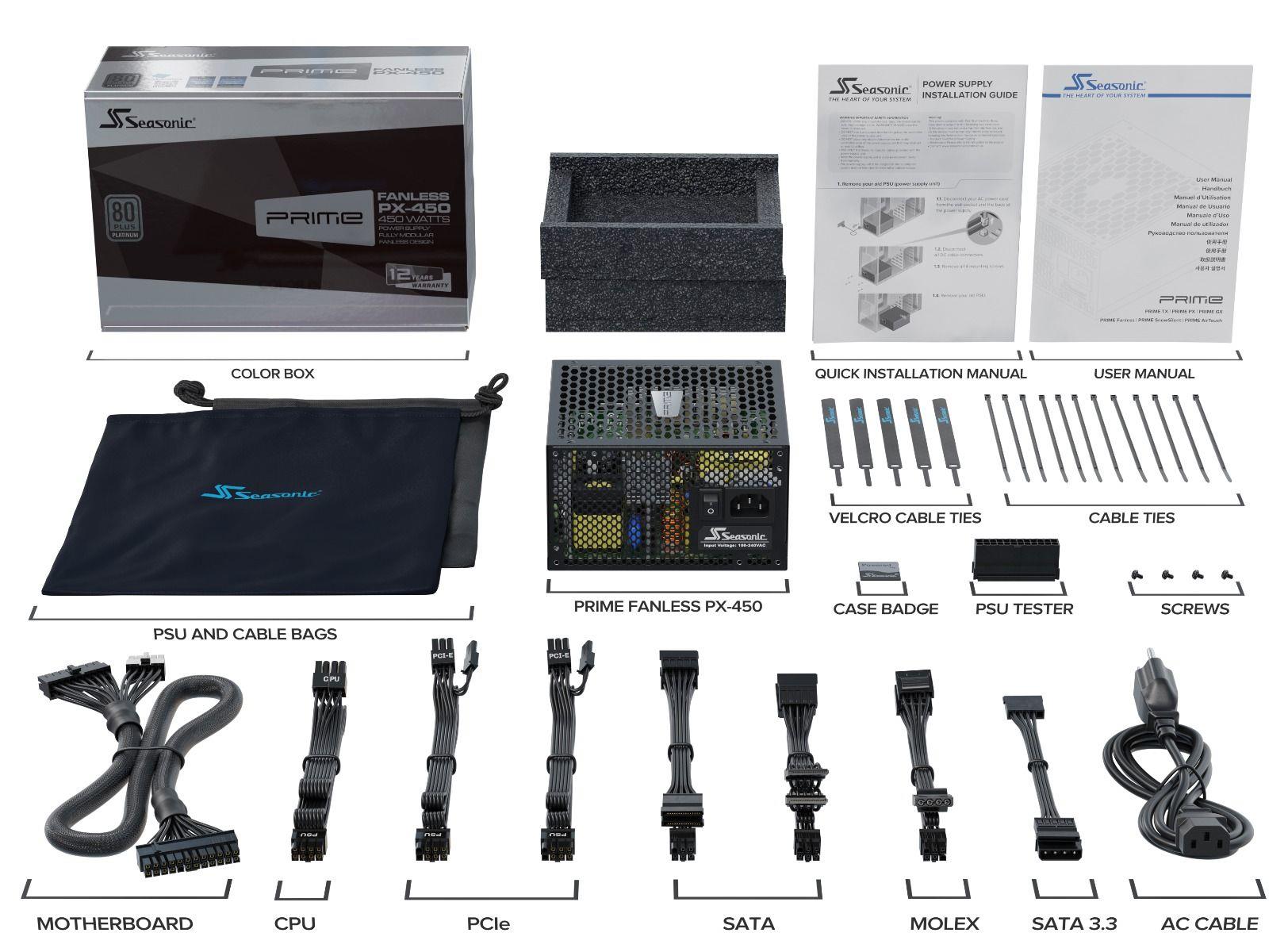

Fully-Modular
CPU power cable length
650
Motherboard power cable length
610
SATA power cable length
860
SATA power cable length
810
Peripheral (Molex) power cable length
690
Peripheral (Molex) power cable length
470
PCI Express power cable length
750
CPU power connectors (8-pin)
2
Total power
450
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+3.3V)
100
Combined power (+12V)
444
Combined power (+5V)
100
Combined power (-12V)
3.6
Combined power (+5Vsb)
15
Max output current (+3.3V)
20
Max output current (+12V)
37
Max output current (+5V)
20
Max output current (-12V)
0.3
Max output current (+5Vsb)
3
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
