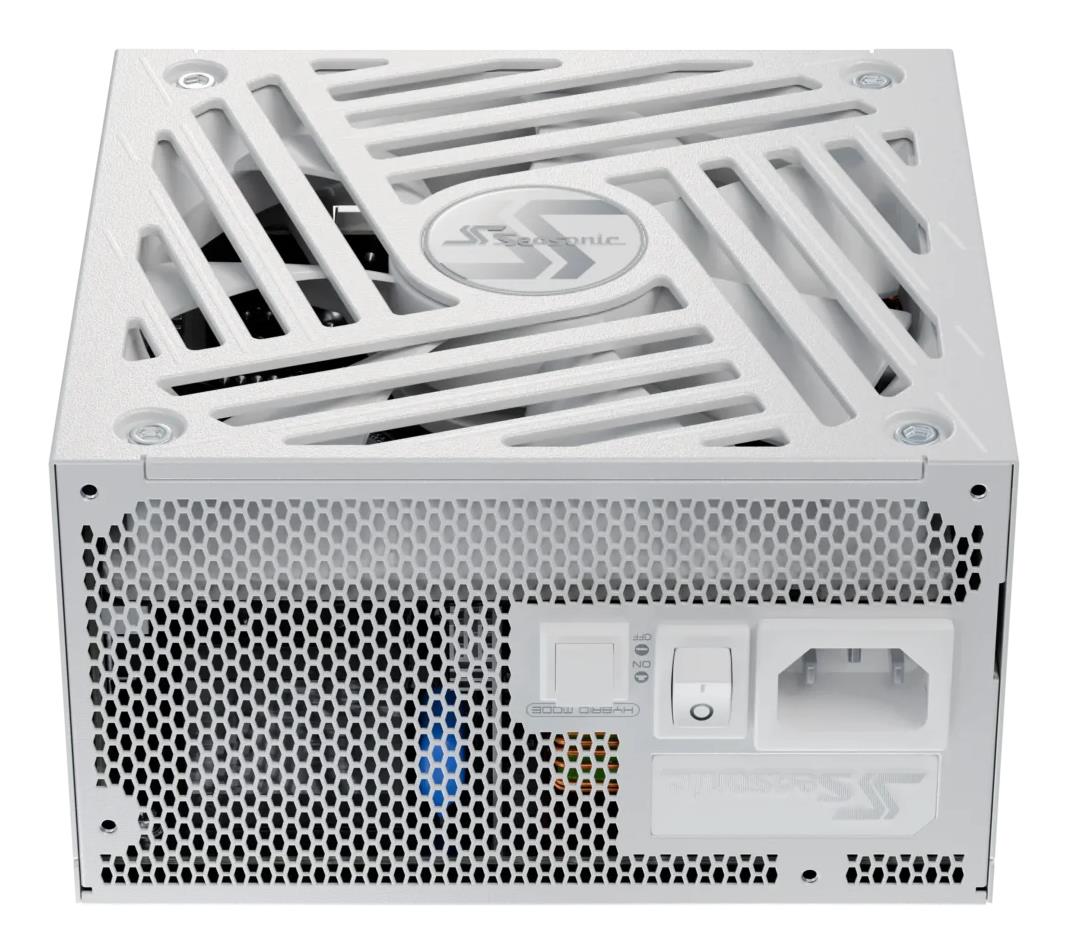

CASE PSU ATX 850W/FOCUS-GX-850-V4-WHITE SEASONIC
ELKO kood
1427535
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode

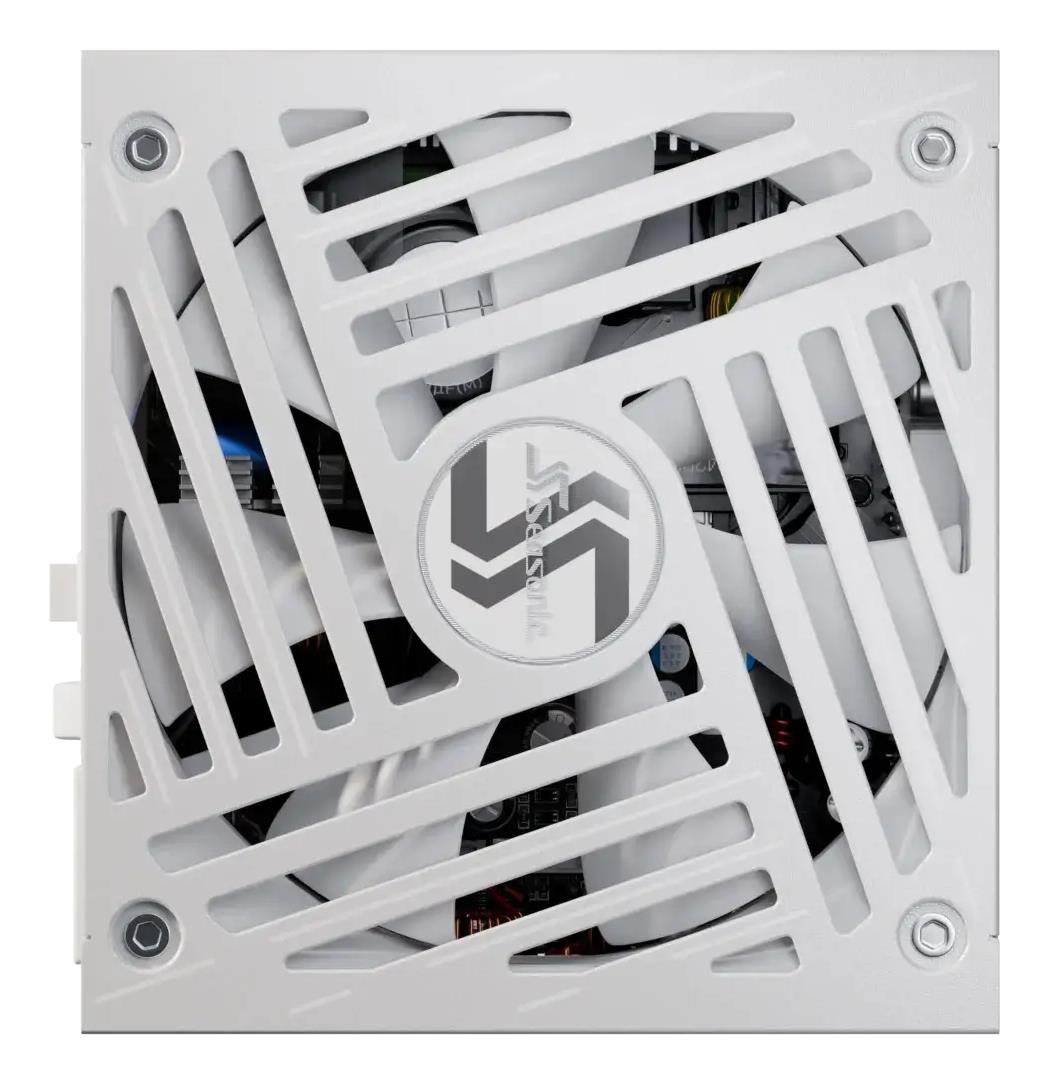

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/a946aa28-eb68-4391-adb2-57b91f067592.Jpeg
CnCode
85044095
Unit Calculated Weight
3.52
Unit Calculated Volume
0.008442
Shipping Box Width
21
Shipping Box Depth
60
Shipping Box Height
33.5
Shipping Box Weight
17.6
Units per Shipping Box
5
Model name
FOCUS GX White ATX 3 (2024)
Warranty period
10
Sustainability certificates
ENERGY STAR
Package type
Box
Width
150
Depth
140
Height
86
Compliance certificates
RoHS
Compliance certificates
CE
Compliance certificates
CB
Compliance certificates
EAC
Compliance certificates
REACH
Compliance certificates
WEEE
Compliance certificates
cTUVus
Safety
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Operating temperature (T-T)
0 - 50
On/off switch
Y
Product colour
White
Fan diameter
135
Number of fans
1
Cooling type
Active
Bearing technology
FDB
80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
Mean time between failures (MTBF)
100000
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
2
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
3
CPU power connector (4+4 pin)
Y

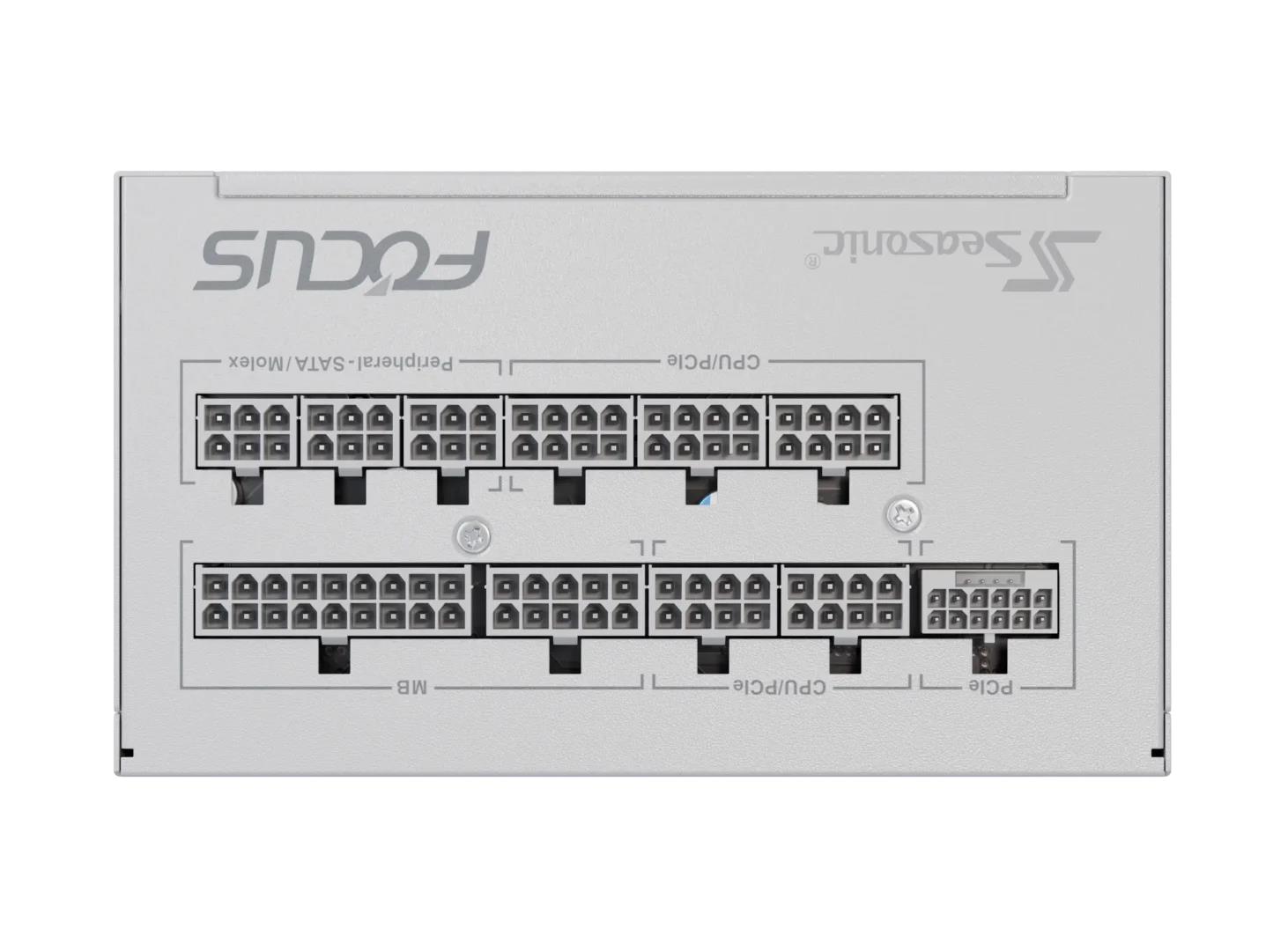

Cabling type
Fully-Modular
Motherboard power cable length
610
SATA power cable length
550
Peripheral (Molex) power cable length
690
CPU power cable length
700
PCI Express power connectors (12+4 pin)
1
Maximum input current (@110V)
11
Maximum input current (@220V)
5.5
Total power
850
AC input voltage
100 - 240
AC input frequency
50/60
Input current
11 - 5.5
Combined power (+3.3V)
100
Combined power (+12V)
840
Combined power (+5V)
100
Combined power (-12V)
3.6
Combined power (+5Vsb)
15
Max output current (+3.3V)
20
Max output current (+12V)
70
Max output current (+5V)
20
Max output current (-12V)
0.3
Max output current (+5Vsb)
3
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Overheating
Power protection features
Short circuit
Power protection features
Under voltage
