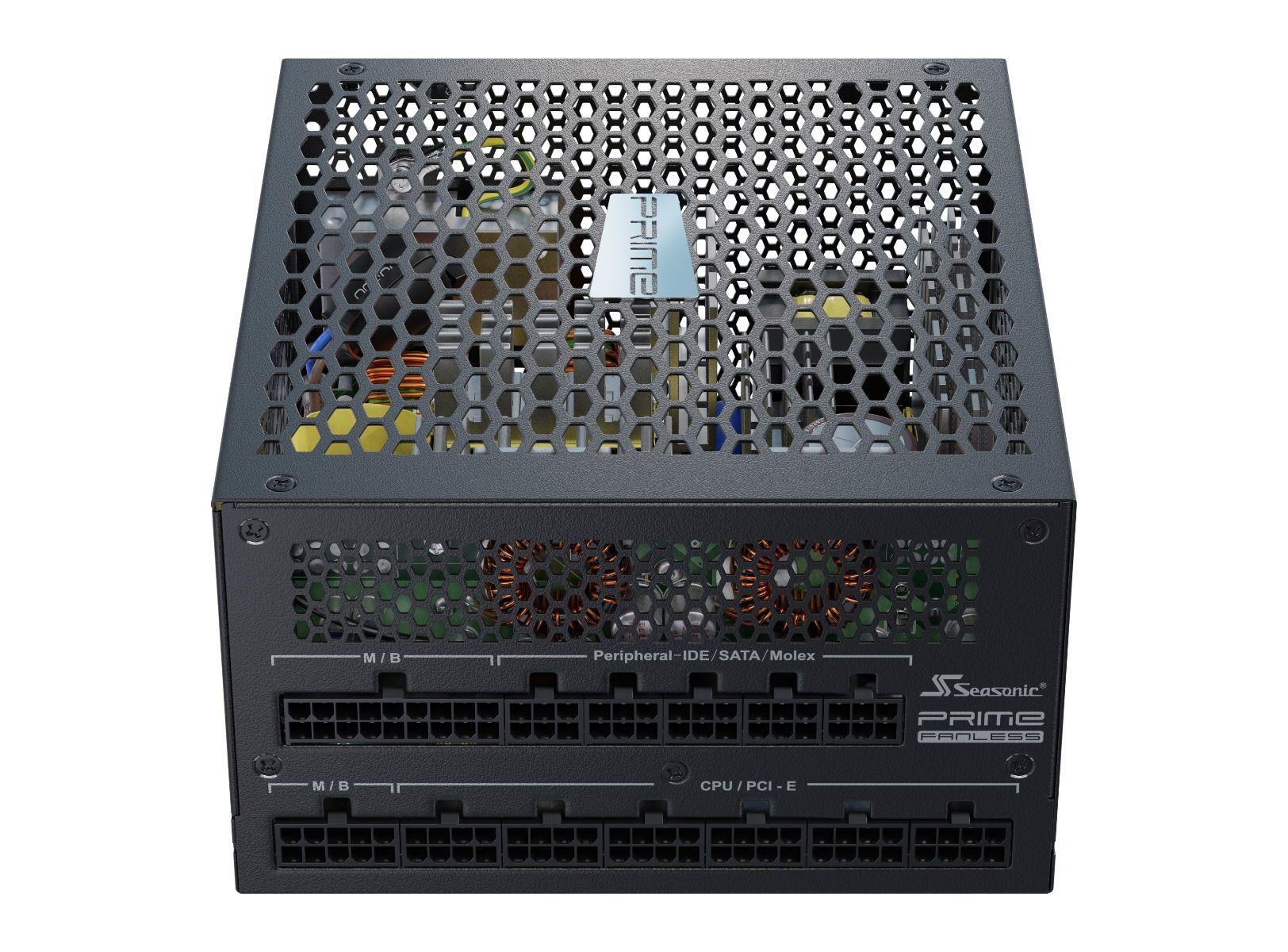

CASE PSU ATX 700W/PRIME-TX-700 SEASONIC
ELKO kood
1427530

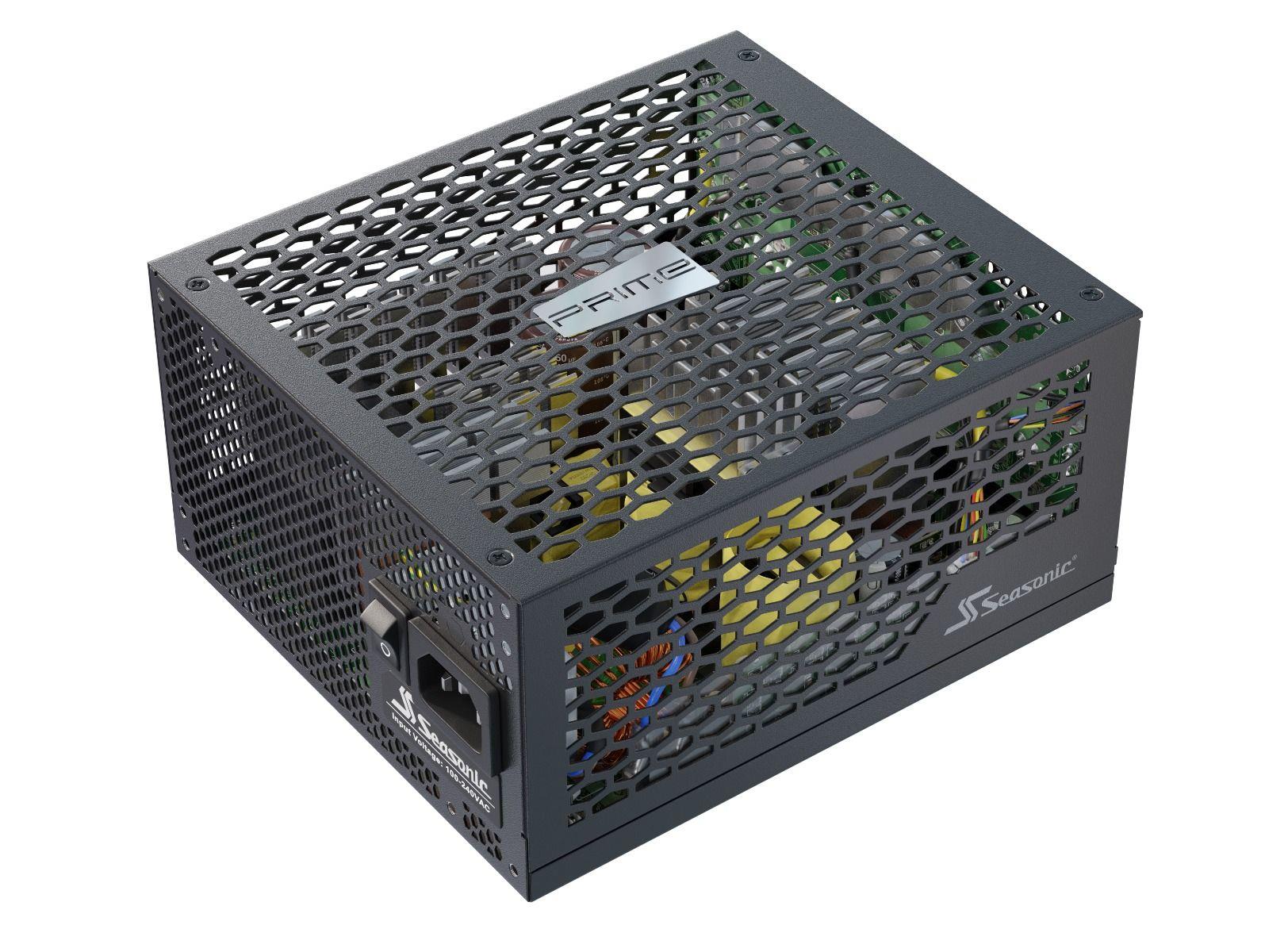

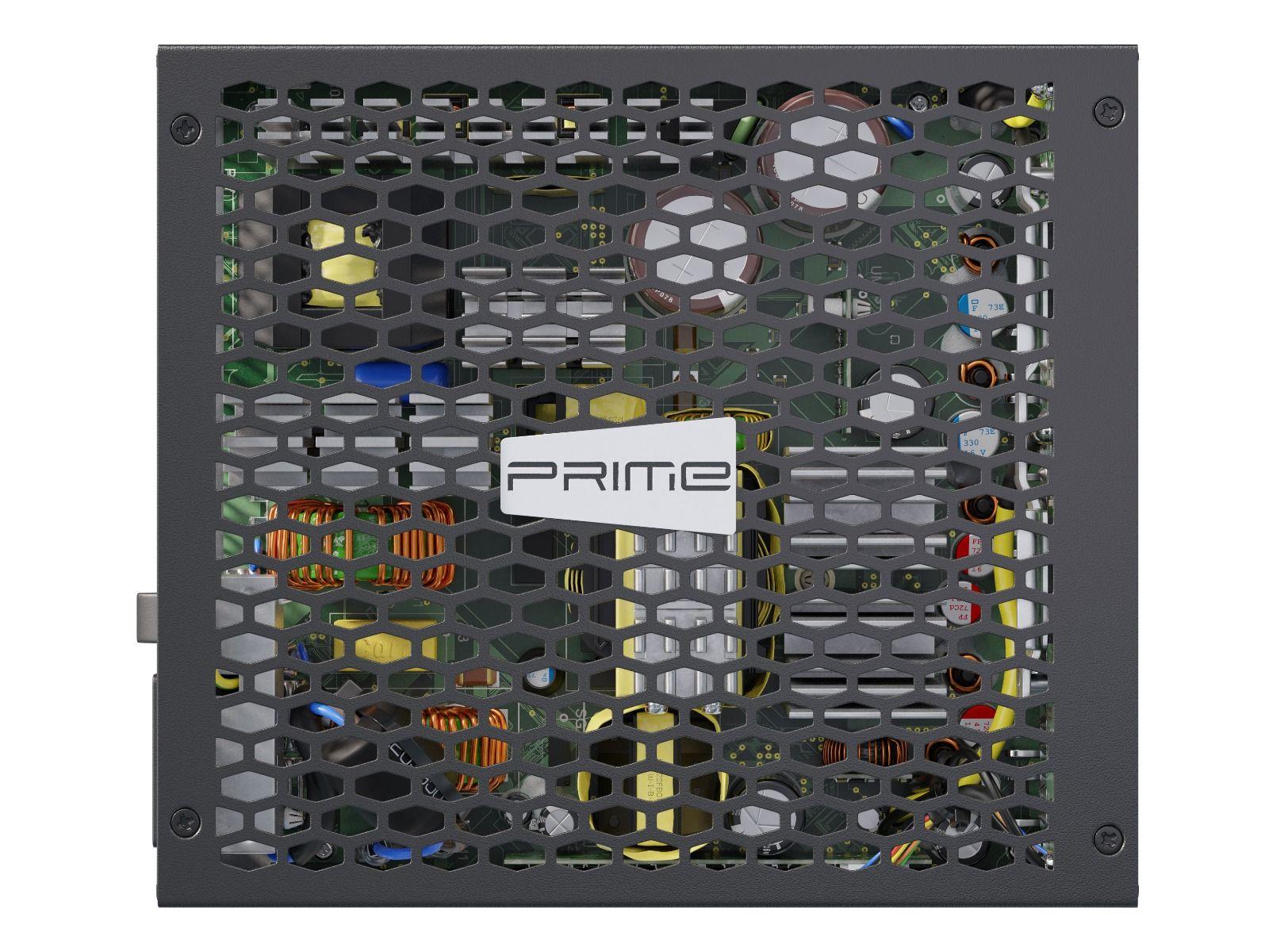

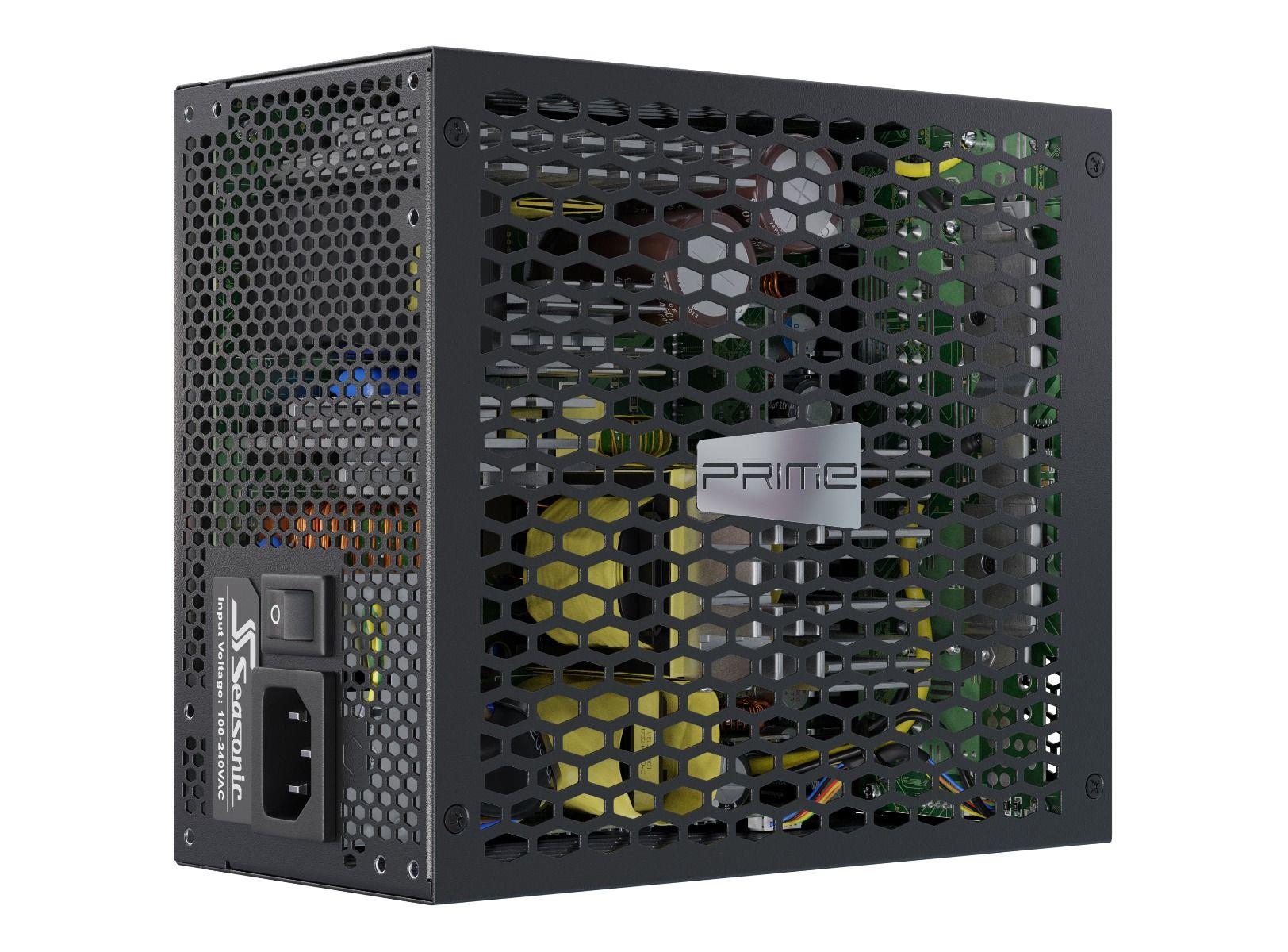

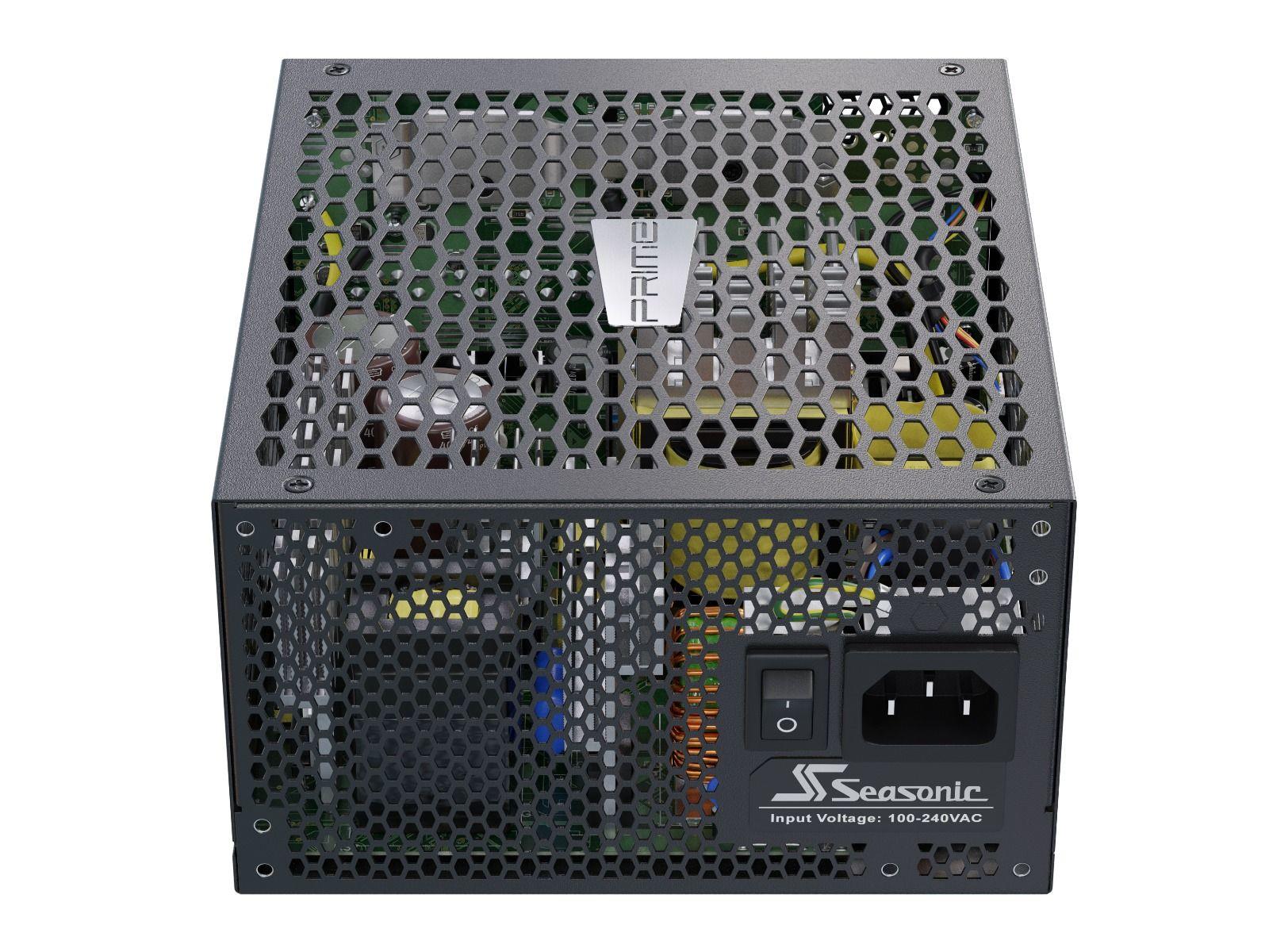

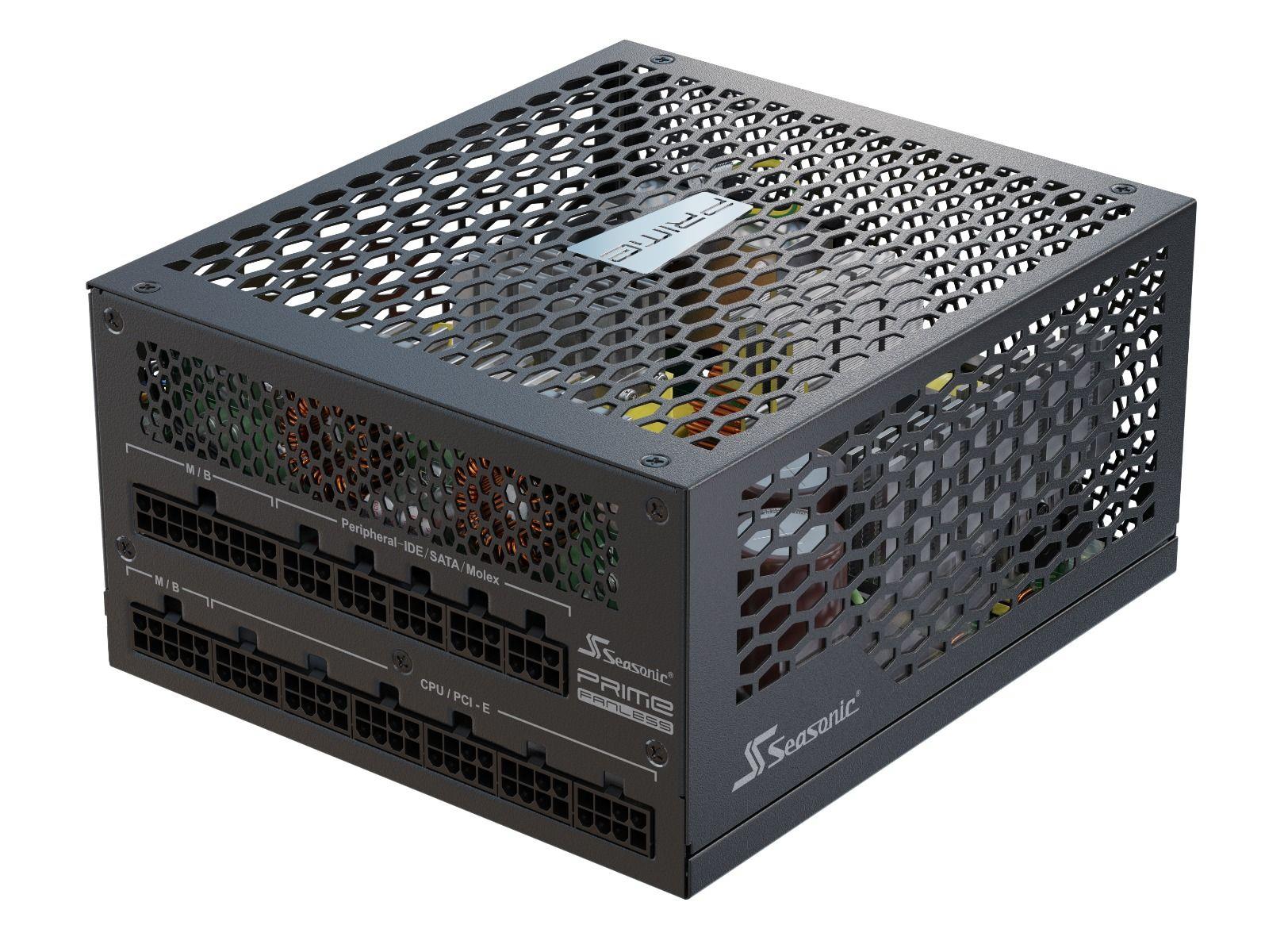

PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Seasonic Fanless Design

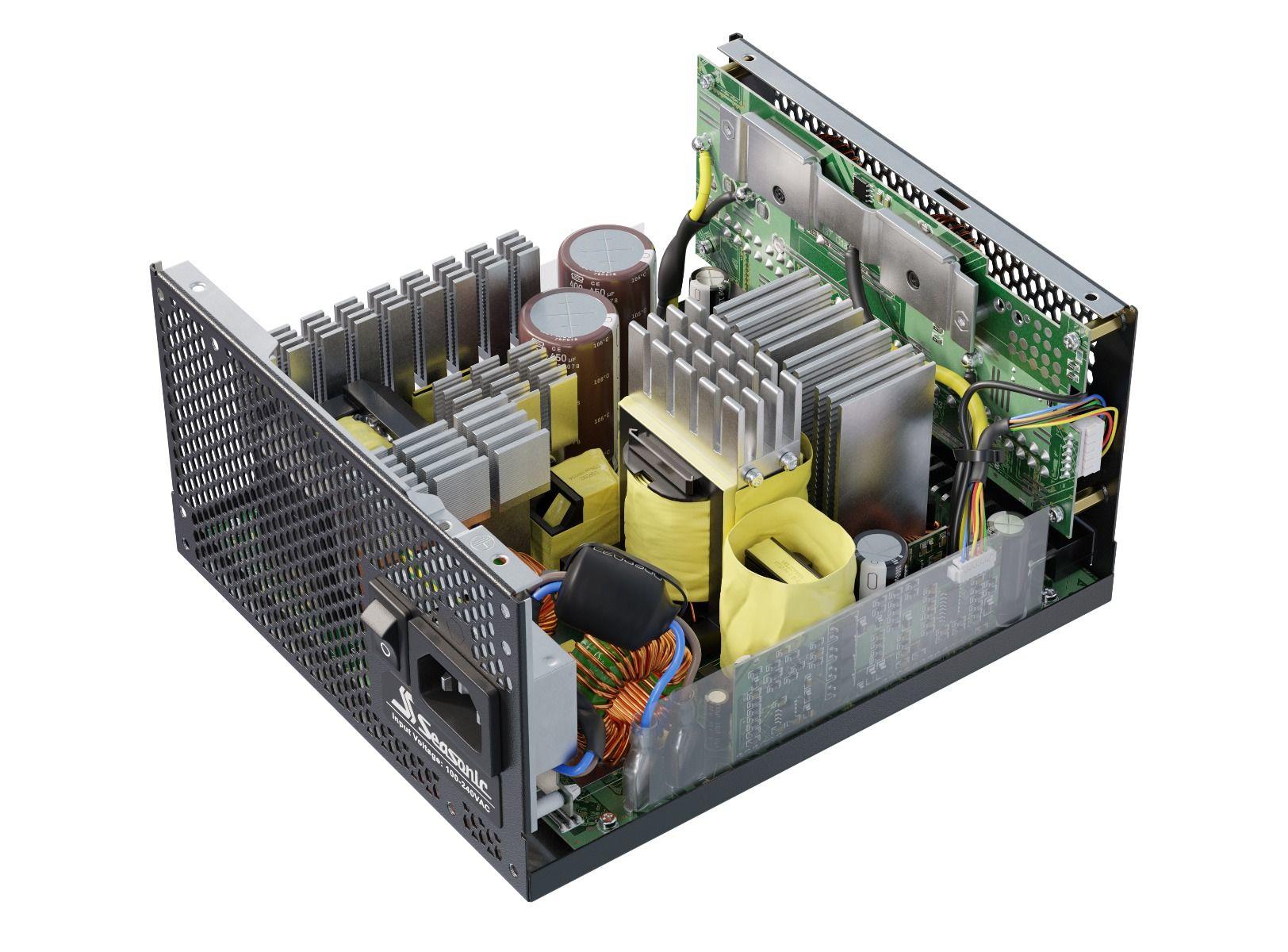

Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/332883be-e830-4b11-a687-786366f2848e.Jpeg
CnCode
85044095
Unit Calculated Weight
3.44
Unit Calculated Volume
0.007538
Shipping Box Width
11.5
Shipping Box Depth
34.5
Shipping Box Height
19
Shipping Box Weight
3.44
Units per Shipping Box
1
Model name
PRIME FANLESS TX
Harmonized System (HS) code
84733020
Sustainability certificates
ENERGY STAR
Package type
Box
Width
150
Depth
170
Height
86
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Compliance certificates
RoHS
Operating temperature (T-T)
0 - 45
Product colour
Black
On/off switch
Y
Cooling type
Passive
80 PLUS certification
80 PLUS Titanium
Purpose
PC
Power supply unit (PSU) form factor
ATX
Mean time between failures (MTBF)
150000
Supported motherboard form factors
ATX
CPU power cable length
650
Motherboard power cable length
610
SATA power cable length
450
SATA power cable length
800
SATA power cable length
810
Peripheral (Molex) power cable length
690
Peripheral (Molex) power cable length
470
Peripheral (Molex) power cable length
300
PCI Express power cable length
750
CPU power connectors (8-pin)
2
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
4

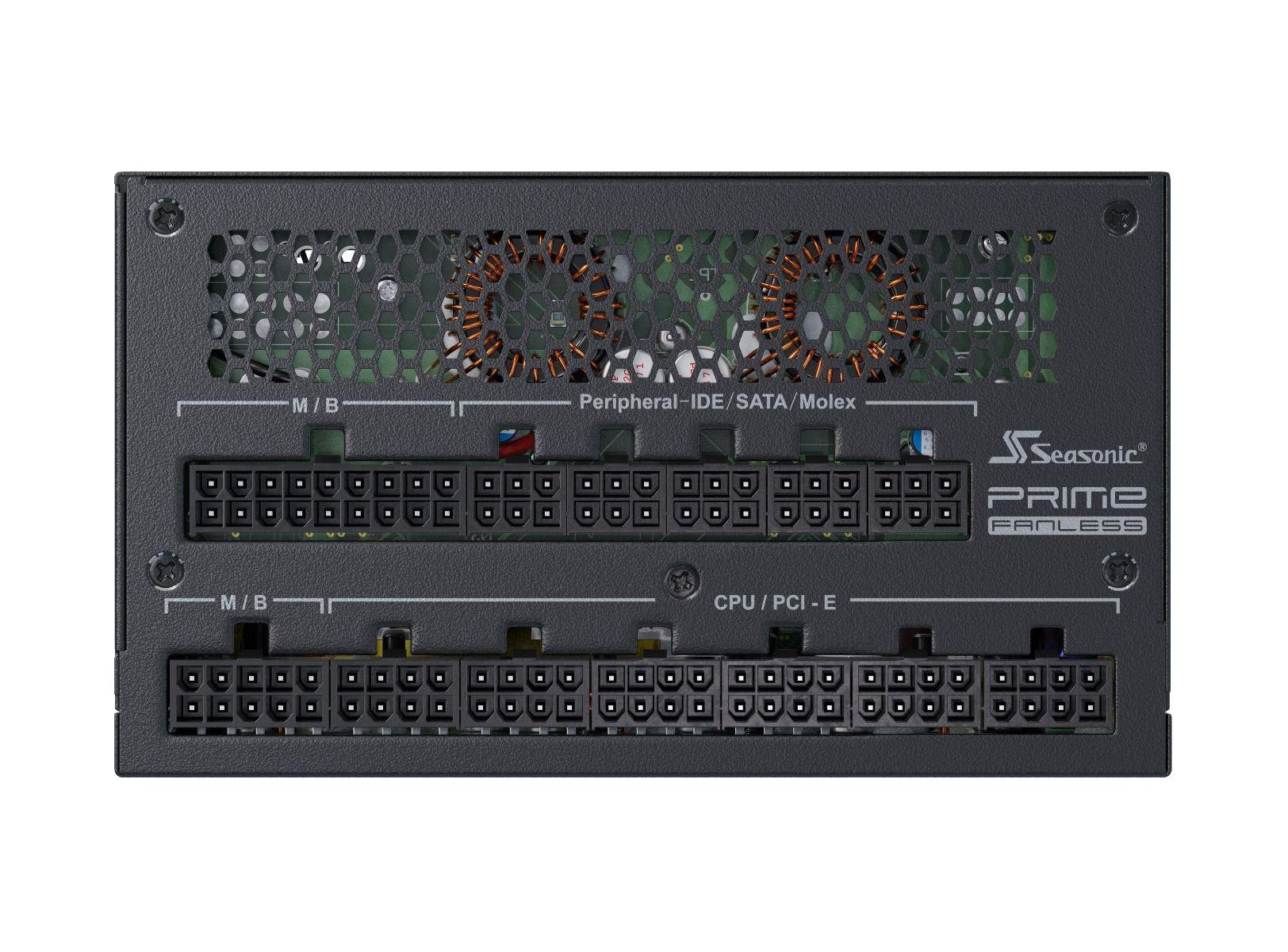

Cabling type
Fully-Modular
Total power
700
AC input voltage
100 - 240
AC input frequency
50 - 60
Input current
4.5 - 9.5
Combined power (+3.3V)
100
Combined power (+12V)
696
Combined power (+5V)
100
Combined power (-12V)
3.6
Combined power (+5Vsb)
15
Max output current (+3.3V)
20
Max output current (+12V)
58
Max output current (+5V)
20
Max output current (-12V)
0.3
Max output current (+5Vsb)
3
Efficiency
94
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
