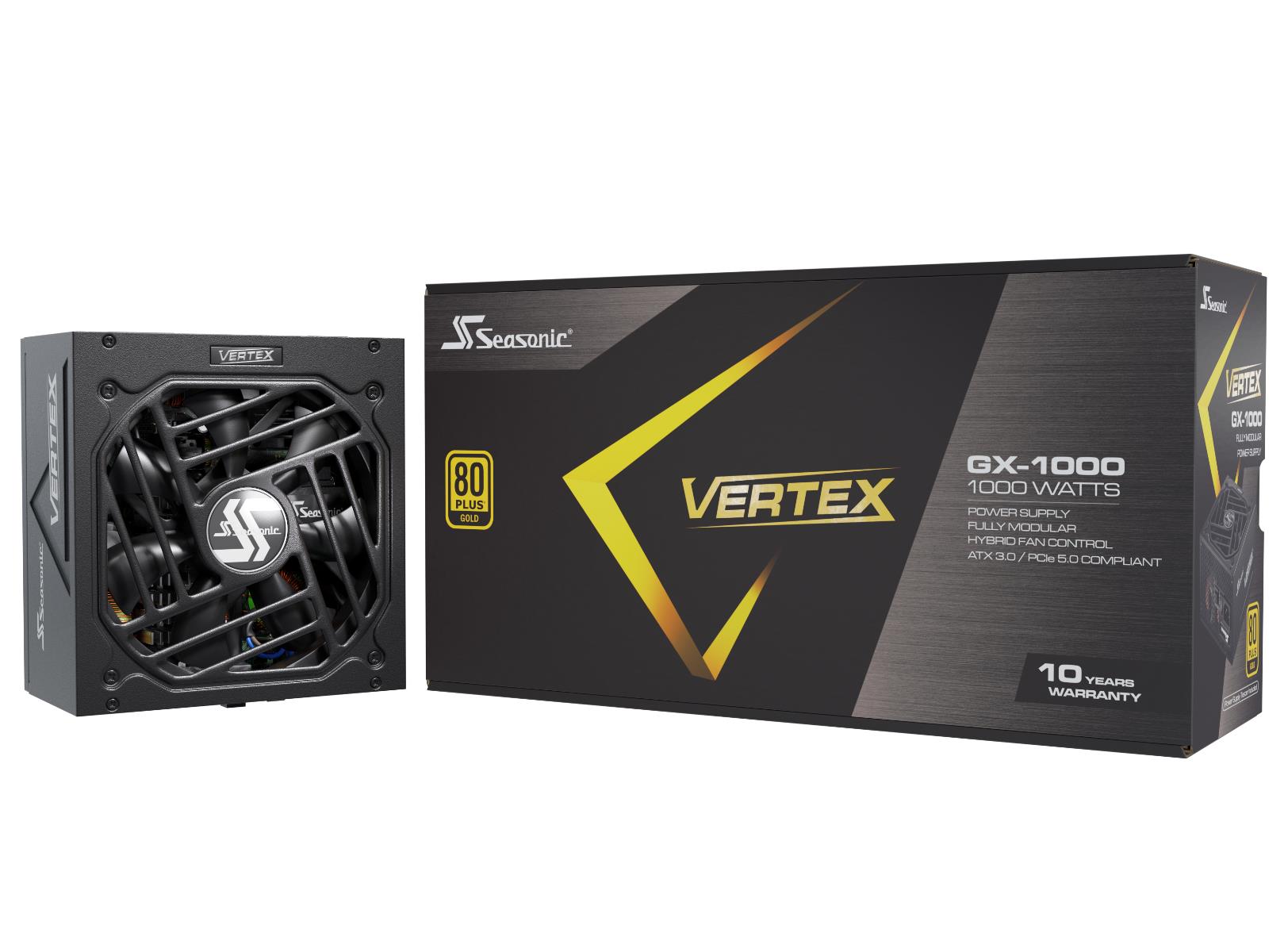

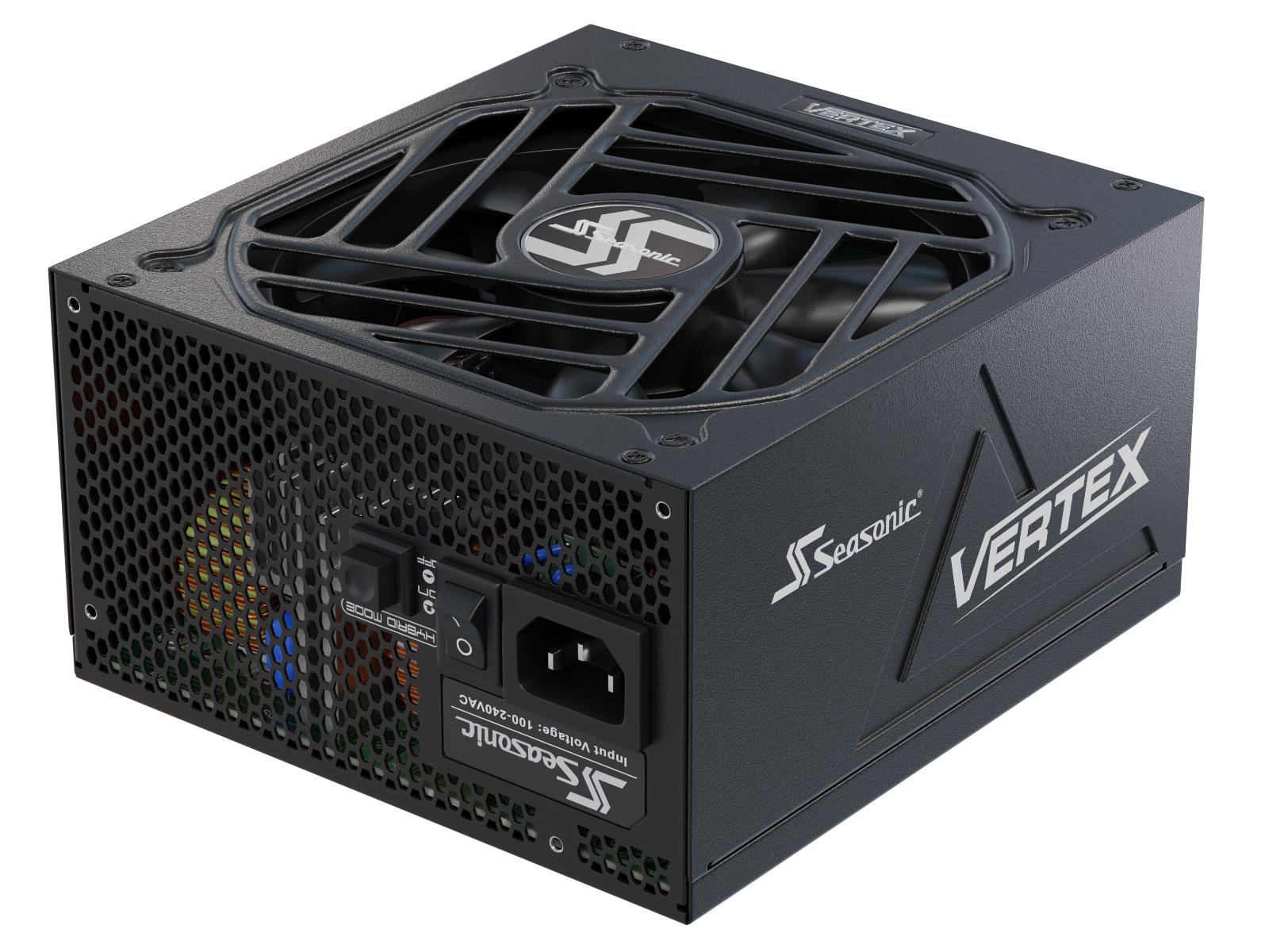

CASE PSU ATX 1000W/VERTEX GX-1000 SEASONIC
ELKO kood
1427509
80 PLUS GOLD
The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

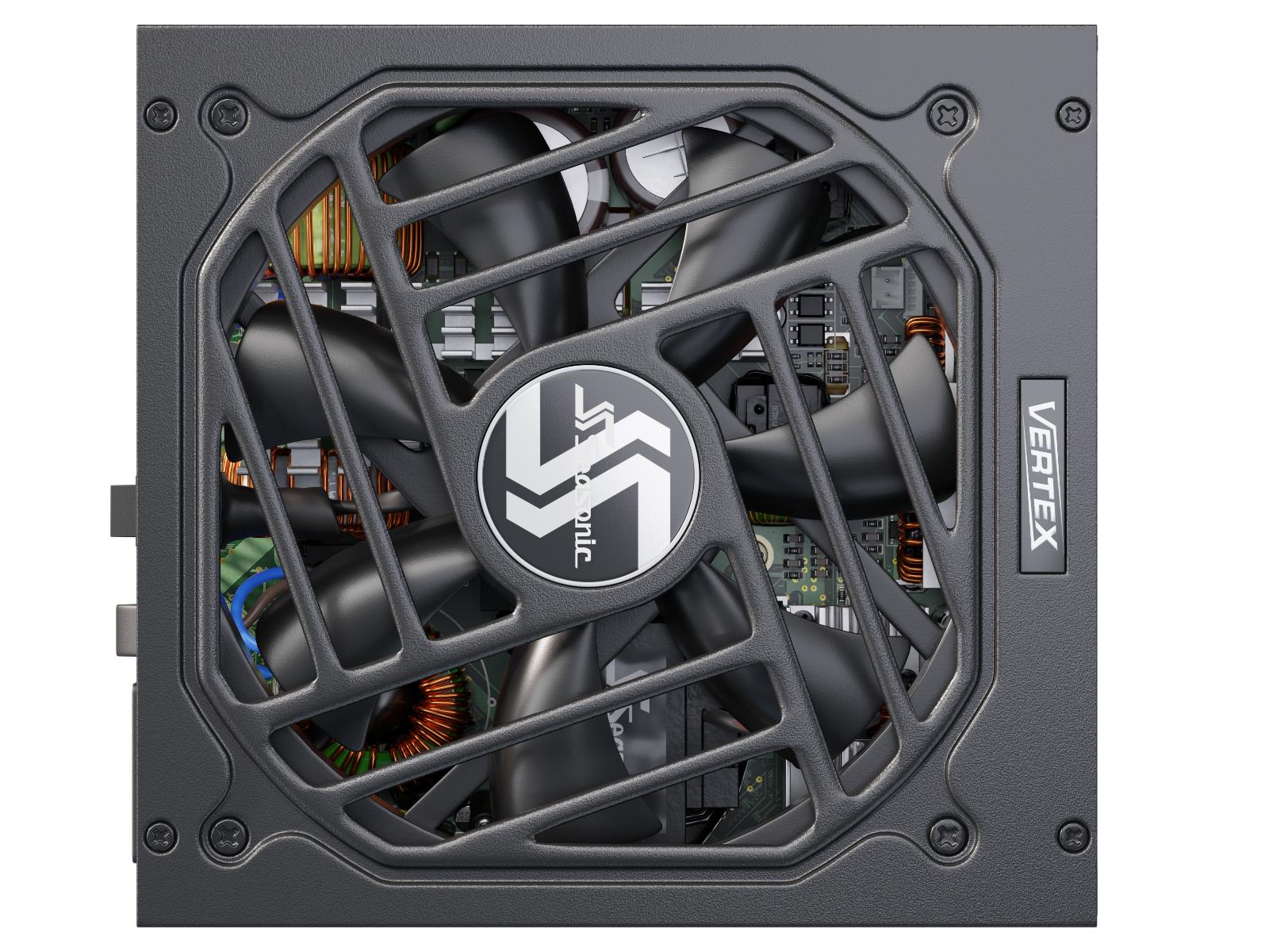

PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/721d1f41-2276-4d97-b875-1f8b5949a311.Jpeg
CnCode
85044095
Unit Calculated Weight
3.76
Unit Calculated Volume
0.007446
Shipping Box Width
11.5
Shipping Box Depth
35
Shipping Box Height
18.5
Shipping Box Weight
3.76
Units per Shipping Box
1
Model name
VERTEX GX
Warranty period
10
Package type
Box
Width
150
Depth
160
Height
86

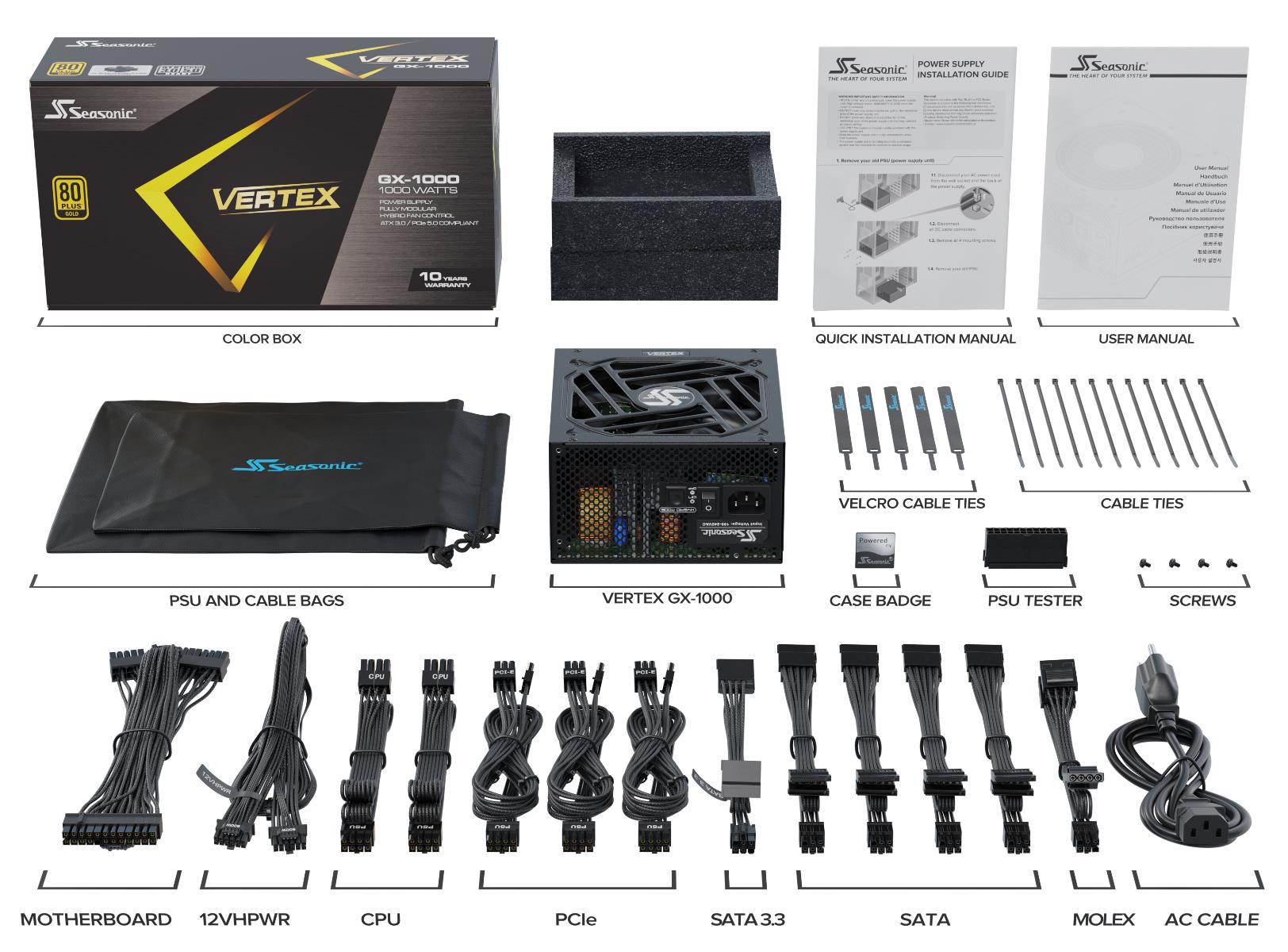

Cables included
AC,CPU,PCIe,Peripheral (Molex),Peripheral (Molex) to SATA 3.3,SATA
Cable tie(s) included
Y
Compliance certificates
RoHS
Compliance certificates
CE
Compliance certificates
REACH
Certification
cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Operating temperature (T-T)
0 - 50
Product colour
Black
Fan diameter
135
Number of fans
1
Cooling type
Active
On/off switch
Y
Bearing technology
FDB
80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.0
Mean time between failures (MTBF)
150000
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
1
ATX power connector (20+4 pin)
Y

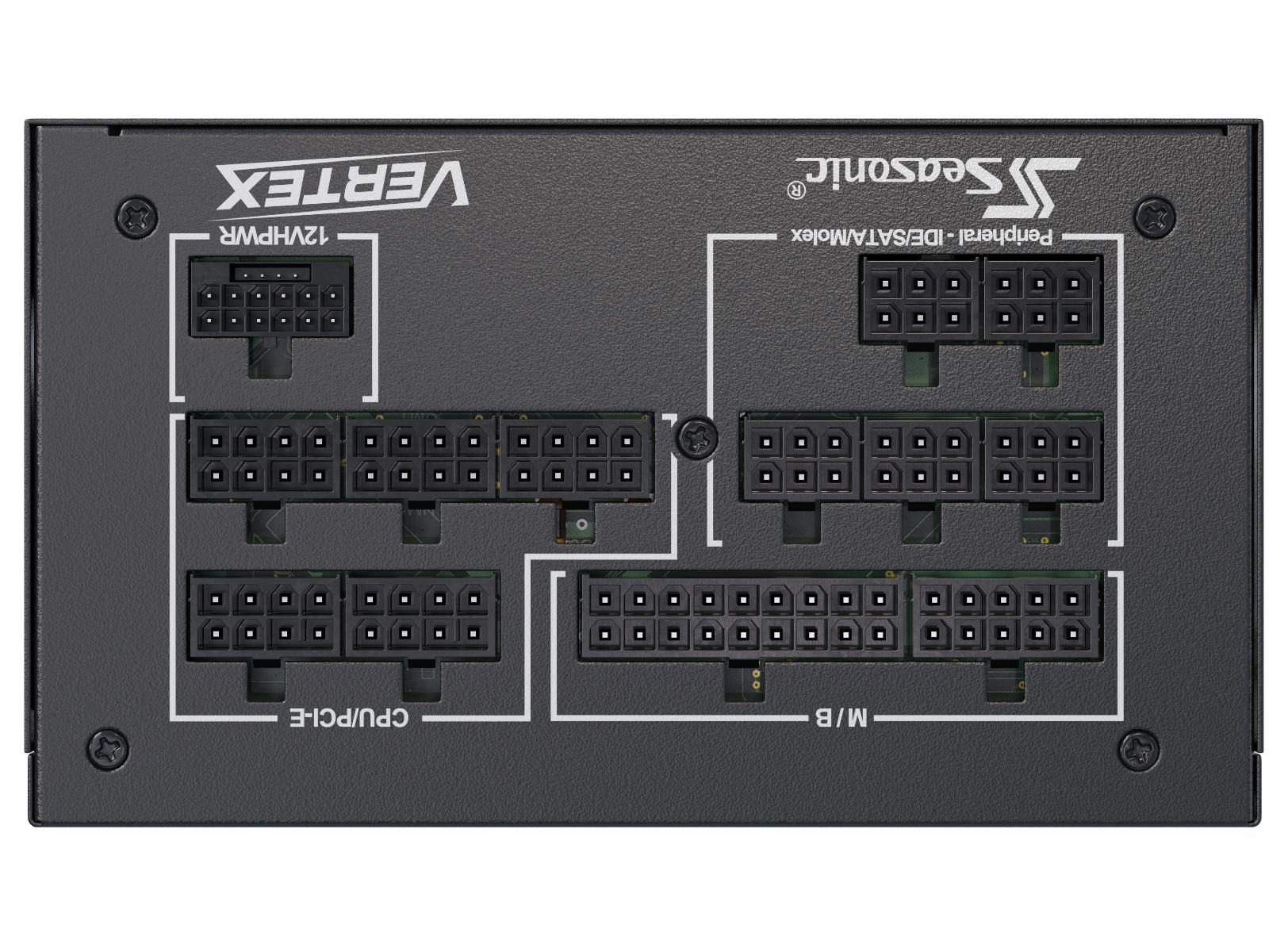

Cabling type
Fully-Modular
Motherboard power cable length
610
SATA power cable length
950
Peripheral (Molex) power cable length
690
CPU P4 connector (4-pin)
2
CPU power cable length
650
Total power
1000
AC input voltage
100 - 240
AC input frequency
50 - 60
Input current
13 - 6.5
Combined power (+3.3V)
125
Combined power (+12V)
996
Combined power (+5V)
125
Combined power (-12V)
3.6
Combined power (+5Vsb)
15
Max output current (+3.3V)
25
Max output current (+12V)
83
Max output current (+5V)
25
Max output current (-12V)
0.3
Max output current (+5Vsb)
3
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
