CASE TOWER EATX W/O PSU/G99.O11DEXL-W.00 LIAN LI
ELKO kood
1424966

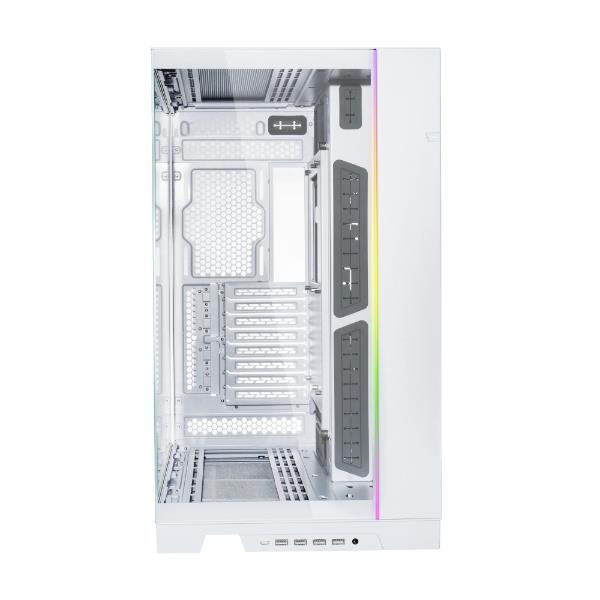

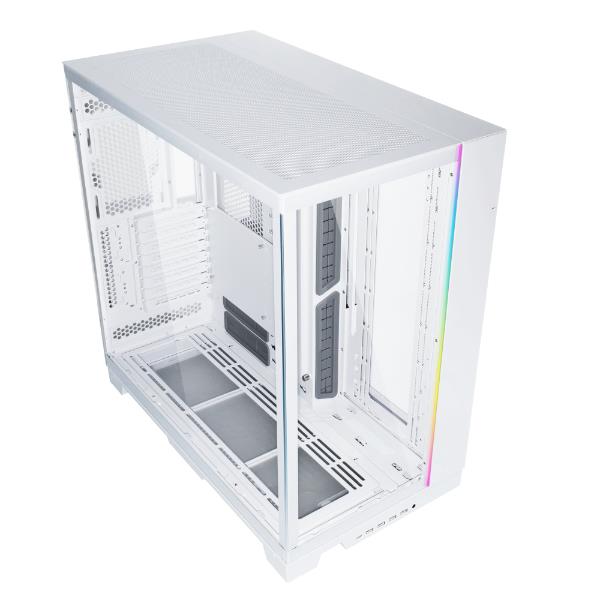

Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.
- Bottom - Nylon Fine Dust filter Tray
- Top and Side – Magnetic Dust Filter
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
Easily secure the graphics card.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design, the fan brackets can be easily removed or installed.
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.
- Bottom - Nylon Fine Dust filter Tray
- Top and Side – Magnetic Dust Filter
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
Easily secure the graphics card.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design, the fan brackets can be easily removed or installed.
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/1c224771-8efa-49a1-8ab6-0dc9dc9888d9.Jpeg
CnCode
84733080
Unit Calculated Weight
14.8
Unit Calculated Volume
0.1705
Shipping Box Weight
14.85
Shipping Box Width
41
Shipping Box Depth
63
Shipping Box Height
66
Units per Shipping Box
1
Model
O11DEXL-W White
Width
304
Depth
522
Height
531.9
Warranty period
1
SSD form factor
2.5"
HDD/SSD combo cage
Y
2.5" Internal
3
ATX
Yes
Supported HDD sizes
2.5
Supported HDD sizes
3.5
2.5"/3.5" Internal
4
Rear fans diameters supported
120
Bottom radiator sizes supported
240
Bottom radiator sizes supported
360
Bottom radiator sizes supported
280
Bottom radiator sizes supported
420
Top fans diameters supported
120
Top fans diameters supported
140
Side fans diameters supported
120
Side fans diameters supported
140
Bottom fans diameters supported
120
Bottom fans diameters supported
140
Side radiator sizes supported
240
Side radiator sizes supported
360
Side radiator sizes supported
420
Side radiator sizes supported
280
Top radiator sizes supported
240
Top radiator sizes supported
280
Top radiator sizes supported
360
Top radiator sizes supported
420
Number of top fans supported (max)
3
Number of rear fans supported (max)
2
Number of bottom fans supported (max)
3
Number of side fans supported (max)
3
Combo headphone/mic port
Y
EATX
Yes
MicroATX
Yes
USB 3.0
4
MiniITX
Yes
Side window
Y
Illumination
Y
Tempered glass panel(s)
Y
Maximum PSU length
220
Illumination colour
Blue
Illumination colour
Green
Illumination colour
Red
Material
Tempered glass
Material
Aluminium
Material
Steel
Form factor
Tower
Type
PC
Product colour
White
Supported motherboard form factors
ATX
Supported motherboard form factors
Micro ATX
Supported motherboard form factors
Mini-ITX
Supported motherboard form factors
EATX
Number of expansion slots
8
Anti-dust filter
Y
Reset button
Y
On/off button
Y
Maximum CPU cooler height
167
Maximum graphics card length
460
USB-C
1
Headphones jack
1
Model name
O11 DYNAMIC EVO XL
