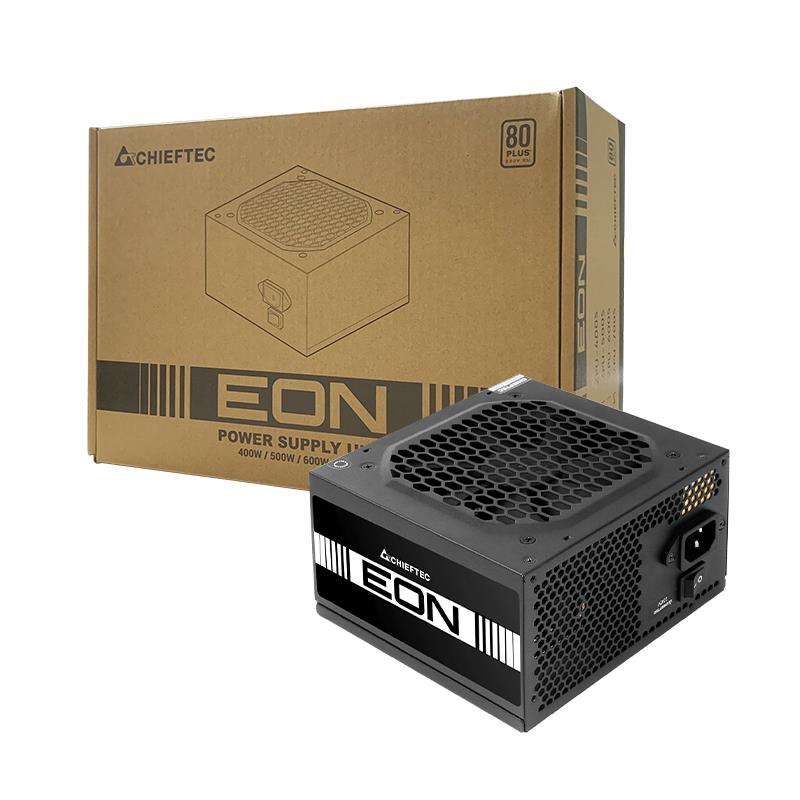

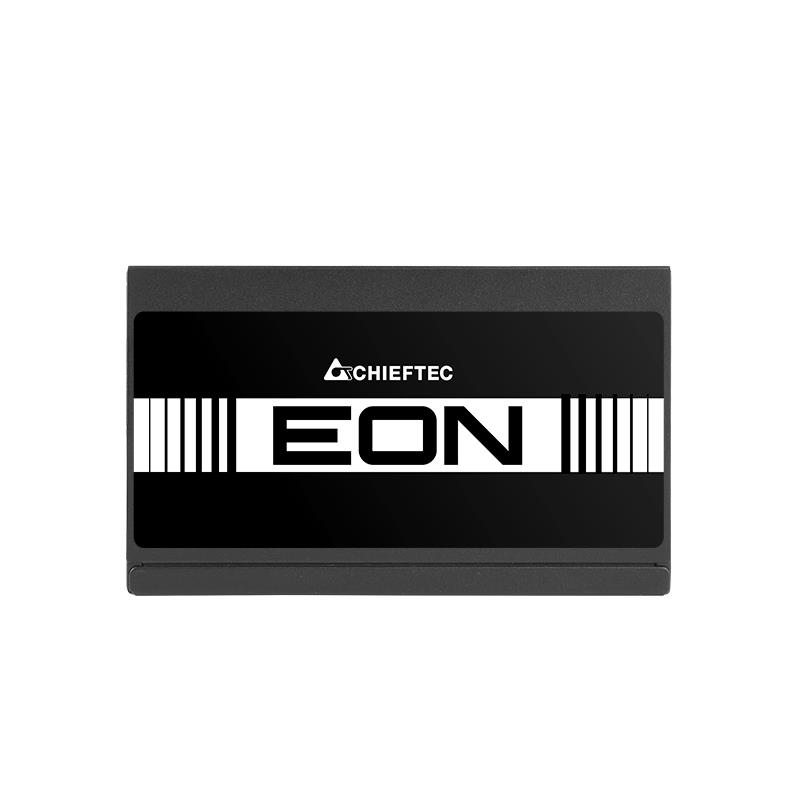

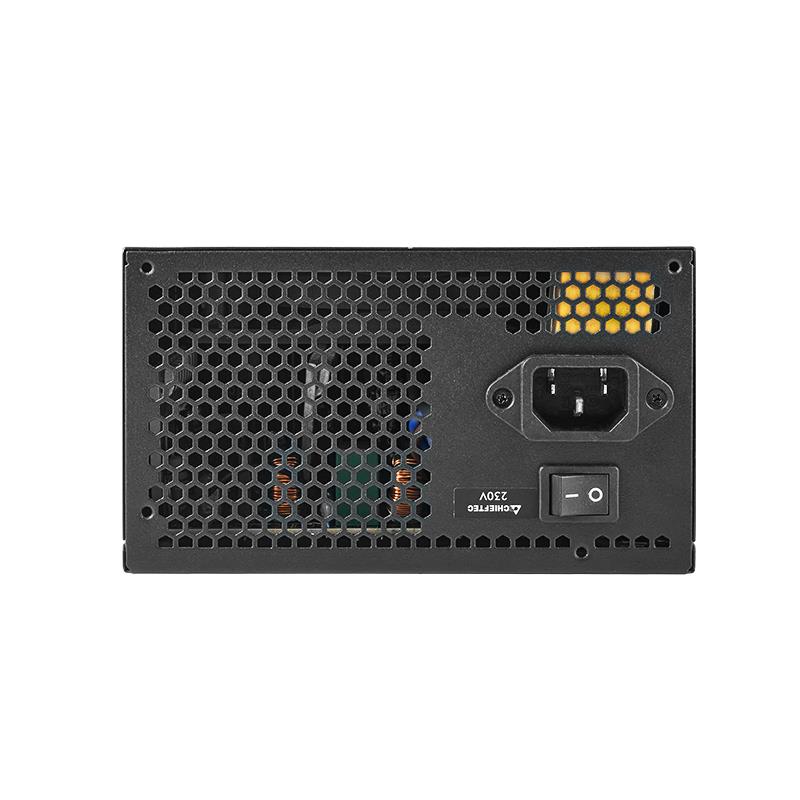

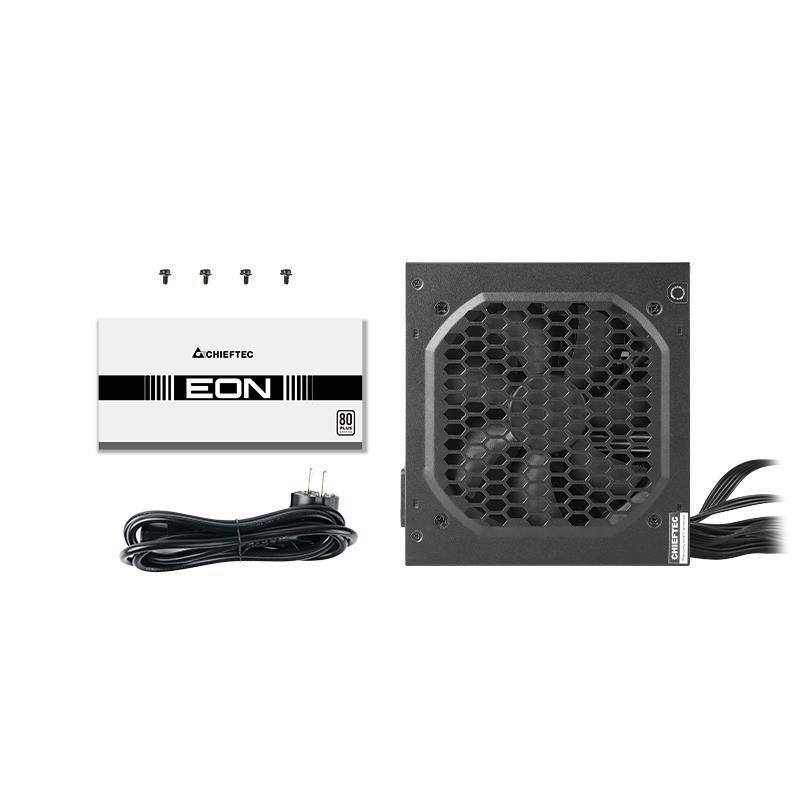

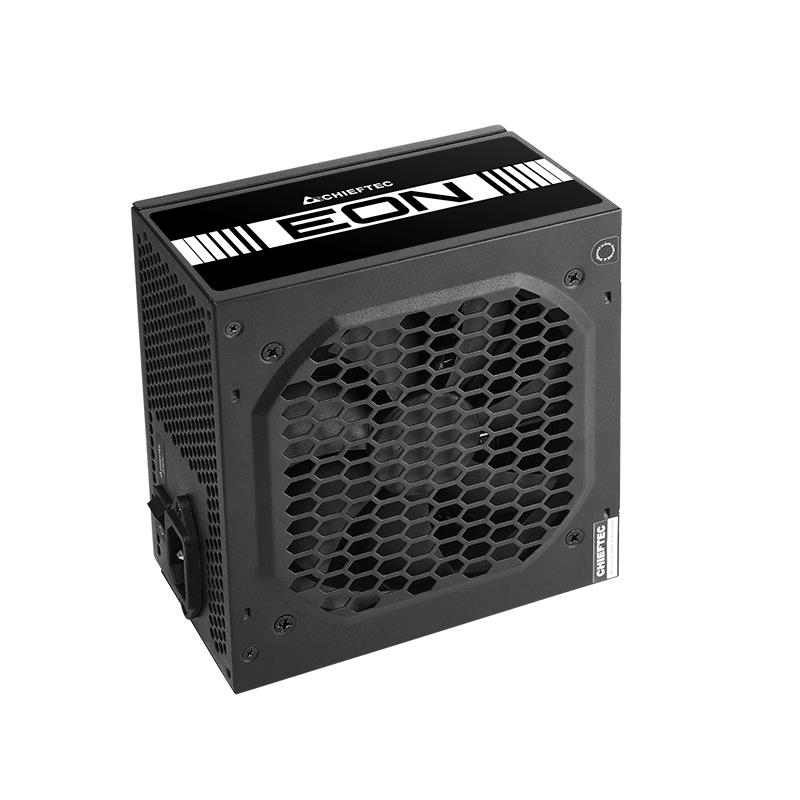

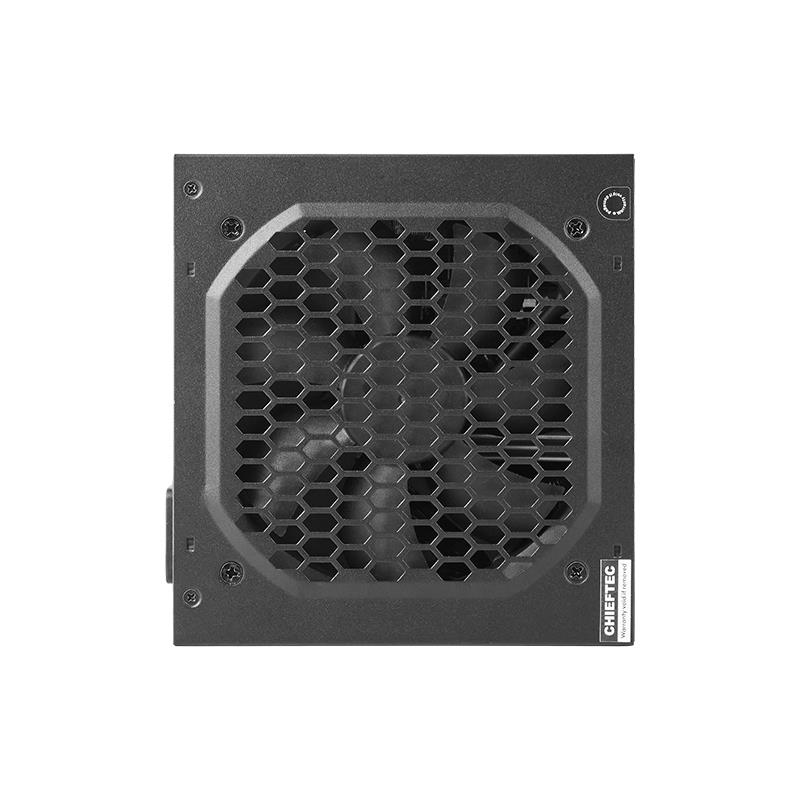

CASE PSU ATX 600W/ZPU-600S CHIEFTEC
ELKO kood
1401198
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/521468ea-2db6-4099-a440-19b81c1f5015.Jpeg
CnCode
85044095
Unit Calculated Weight
1.64
Unit Calculated Volume
0.00459
Shipping Box Width
10
Shipping Box Depth
25.5
Shipping Box Height
18
Shipping Box Weight
1.643
Units per Shipping Box
1
Model name
ZPU-600S
Warranty period
2
Weight
1340
Width
150
Depth
140
Height
86
Product colour
Black
Fan diameter
120
On/off switch
Y
Supported motherboard form factors
ATX
80 PLUS certification
80 PLUS
Purpose
PC/server
Power supply unit (PSU) form factor
ATX
ATX version
2.3
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Y
ATX power connector (20+4 pin)
Y
Cabling type
Non-Modular
Motherboard power cable length
650
SATA power cable length
450
SATA power cable length
600
SATA power cable length
750
Peripheral (Molex) power cable length
450
Peripheral (Molex) power cable length
750
Peripheral (Molex) power cable length
600
EPS power connector (4+4 pin)
Y
Maximum input current (@220V)
4.5
Max output current (+12V1)
45
Total power
600
AC input voltage
200 - 240
AC input frequency
50
Input current
4.5
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (-12V)
4.8
Combined power (+5Vsb)
12.5
Max output current (+3.3V)
20
Max output current (+5V)
20
Max output current (-12V)
0.4
Max output current (+5Vsb)
2.5
Power protection features
Short circuit
Power protection features
Surge protection
Power protection features
Surge and inrush
