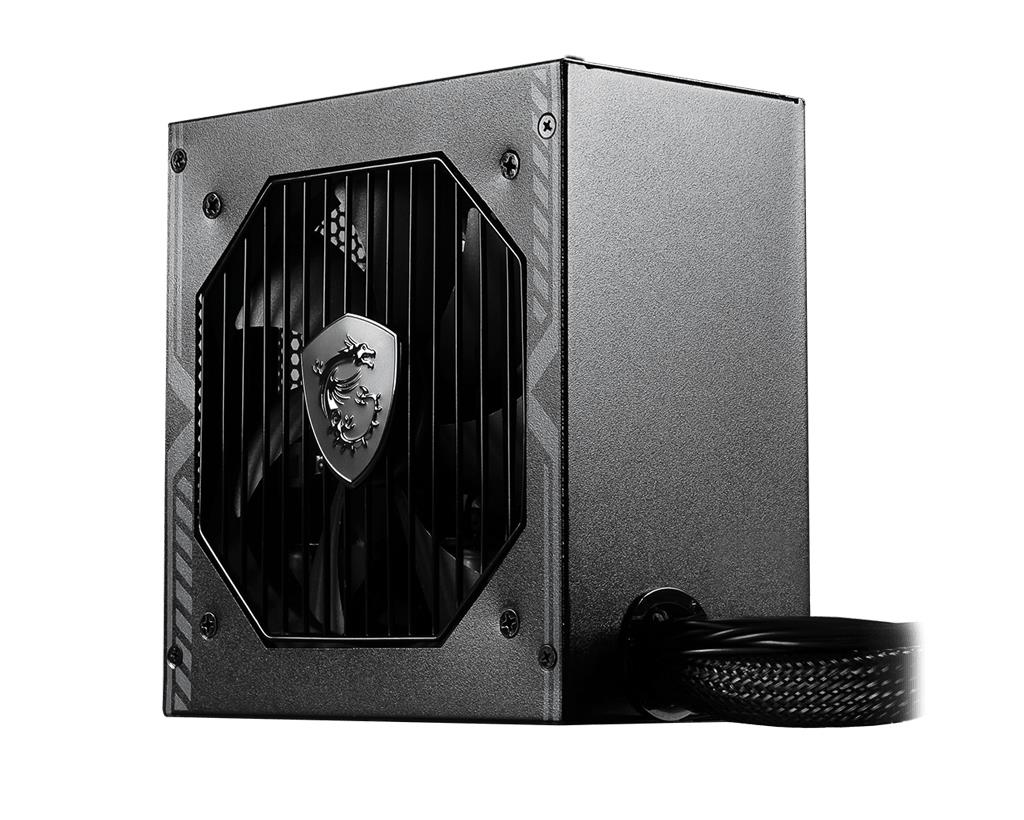

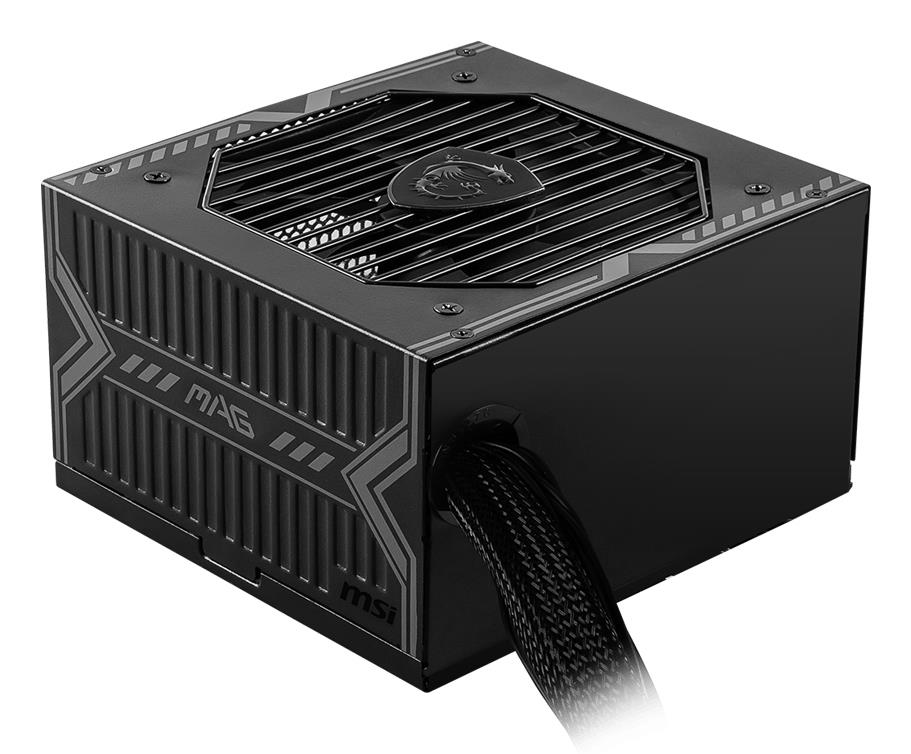

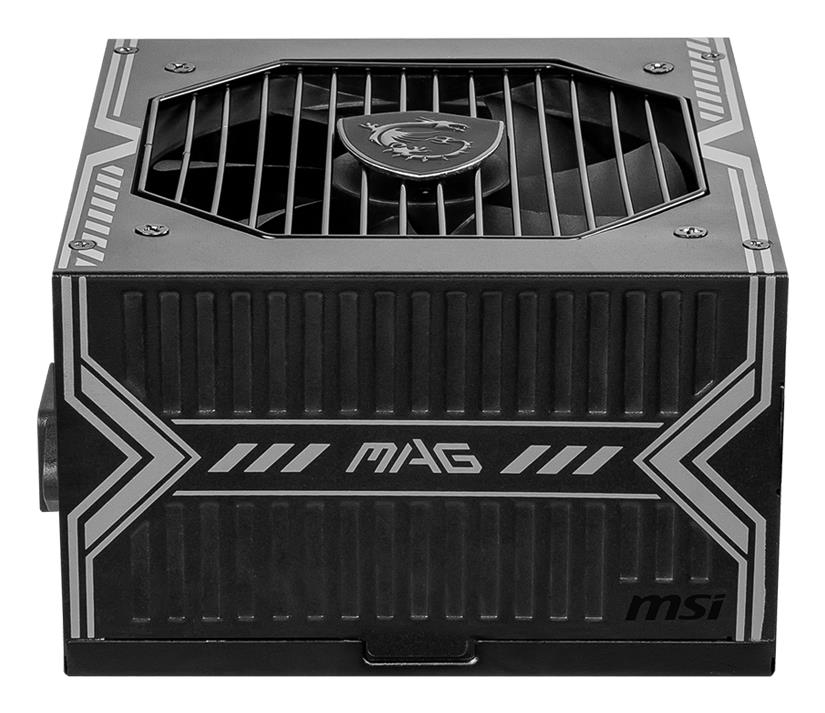

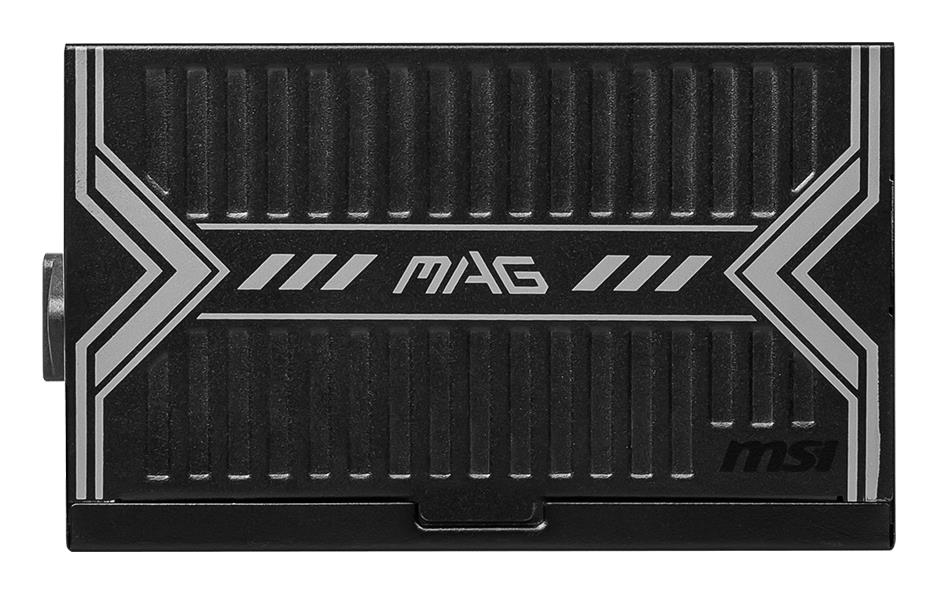

CASE PSU ATX 650W/MAG A650BN MSI
ELKO kood
1361973
MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/6c36ba1f-fb3c-4a9b-9666-bae3e7dc00ef.Jpeg
CnCode
85044095
Unit Calculated Weight
2.081
Unit Calculated Volume
0.0049544
Shipping Box Width
10.6
Shipping Box Depth
24.6
Shipping Box Height
19
Shipping Box Weight
2.081
Units per Shipping Box
1
Model name
MAG A650BN
Harmonized System (HS) code
84733020
Width
150
Depth
140
Height
86
Cooling type
Active
Product colour
Black
Fan diameter
120
Number of fans
1
On/off switch
Y
80 PLUS certification
80 PLUS Bronze
Purpose
PC
Power supply unit (PSU) form factor
ATX
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Y
ATX power connector (20+4 pin)
Y
Cabling type
Non-Modular
Motherboard power cable length
600
EPS power connector (4+4 pin)
Y
ATX Power connector (24-pin)
N
EPS power connector (8-pin)
N
Floppy disk drive connector
N
Maximum input current (@110V)
10
Total power
650
AC input voltage
100 - 240
AC input frequency
50 - 60
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110
Combined power (+12V)
648
Combined power (+5V)
110
Combined power (-12V)
3.6
Combined power (+5Vsb)
12.5
Max output current (+3.3V)
20
Max output current (+12V)
54
Max output current (+5V)
20
Max output current (-12V)
0.3
Max output current (+5Vsb)
20
Efficiency
85
Power protection features
Over current
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Maximum input current (@220V)
5
