CASE PSU ATX 500W/ELP-500S CHIEFTEC
ELKO kood
1234706

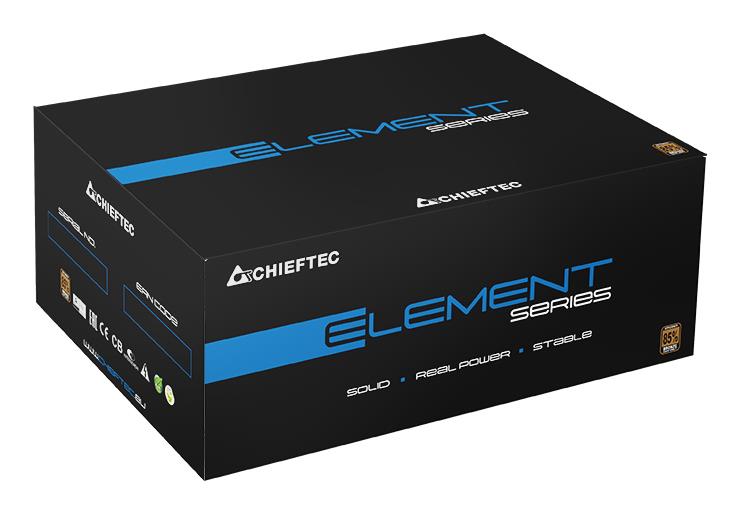

The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/d95efbd1-514d-401d-9376-dbfb238591b7.Jpeg
CnCode
85044095
Unit Calculated Weight
0.652
Unit Calculated Volume
0.003795
Shipping Box Width
17
Shipping Box Depth
23.5
Shipping Box Height
9.5
Shipping Box Weight
0.652
Units per Shipping Box
1
Package weight
1700
Package type
Box
Weight
1440
Width
140
Depth
150
Height
86
Certification
CE, CB, EAC, ErP, RoHS, interseroh, TÜV
Cables included
AC,PCIe,Peripheral (Molex),SATA
On/off switch
Y
Product colour
Black
Fan diameter
120
Number of fans
1
Cooling type
Active
80 PLUS certification
80 PLUS Bronze
Purpose
PC
Power supply unit (PSU) form factor
PS/2
ATX version
2.3
Supported motherboard form factors
ATX
Floppy disk drive connector
Y
Motherboard power cable length
500
SATA power cable length
150
SATA power cable length
500
PCI Express power cable length
500
EPS power connector (4+4 pin)
Y
PCI Express connector
Y
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
PCI Express power connectors (6+2 pin)
1
Cabling type
Non-Modular
Total power
500
AC input voltage
200 - 240
AC input frequency
47 - 63
Input current
4
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110
Combined power (+12V)
456
Combined power (+5V)
110
Combined power (-12V)
3.6
Combined power (+5Vsb)
12.5
Max output current (+3.3V)
18
Max output current (+5V)
17
Max output current (+5Vsb)
2.5
Efficiency
85
Power protection features
Over power
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
Max output current (+12V1)
38
