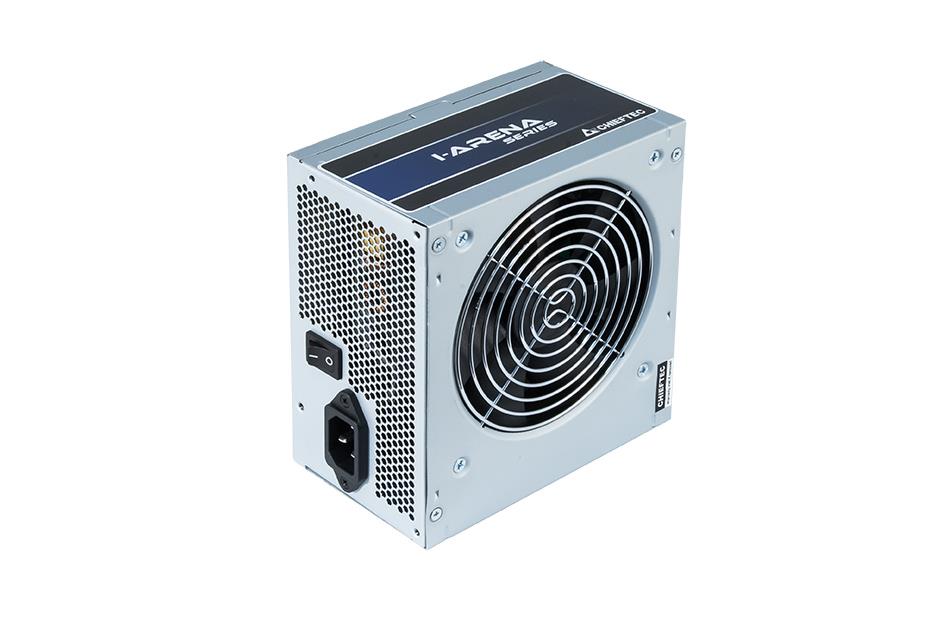

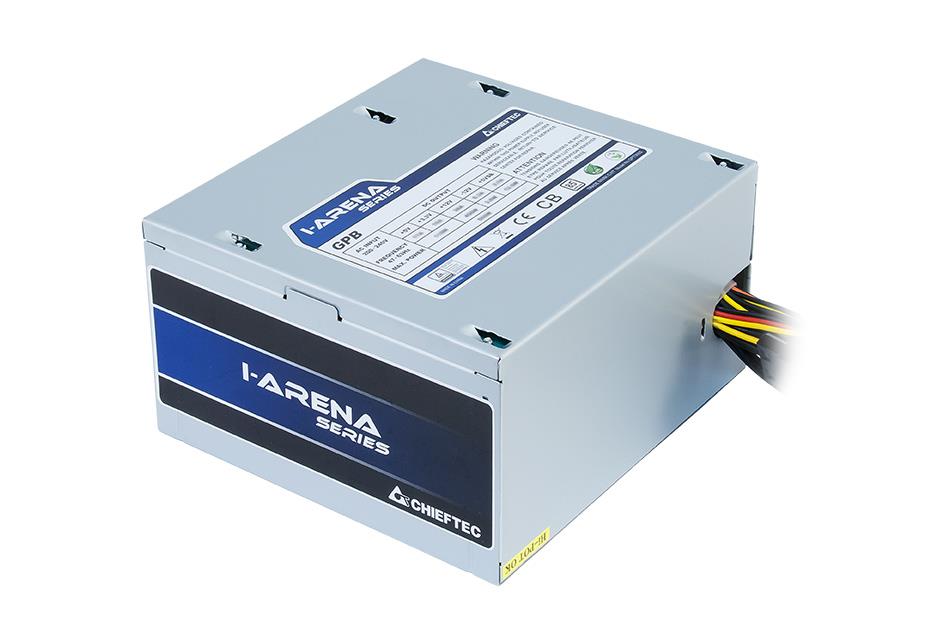

CASE PSU ATX 500W/GPB-500S CHIEFTEC
ELKO kood
1207580
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Spetsifikatsioon
MasterImage
https://static.elko.cloud/ProductImages/d3a6793b-3f07-4bae-91b0-5481c023962e.Jpeg
CnCode
85044095
Unit Calculated Weight
1.22
Unit Calculated Volume
0.00279
Shipping Box Width
9
Shipping Box Depth
20
Shipping Box Height
15.5
Shipping Box Weight
1.218
Units per Shipping Box
1
Warranty card
Y
Harmonized System (HS) code
84733020
Package type
Box
Manual
Y
Width
140
Depth
150
Height
87
Compliance certificates
RoHS
Cooling type
Active
On/off switch
Y
Product colour
Silver
Fan diameter
120
Number of fans
1
Fan location
Top
Purpose
PC
Power supply unit (PSU) form factor
PS/2
ATX version
2.3
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
1
Cabling type
Non-Modular
Efficiency
85
Power protection features
Over voltage
Power protection features
Short circuit
Power protection features
Under voltage
Power protection features
Overload
Total power
500
AC input voltage
200 - 240
AC input frequency
47 - 63
Input current
4
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110
Combined power (+12V)
456
Combined power (+5V)
110
Combined power (-12V)
3.6
Combined power (+5Vsb)
12.5
Max output current (+3.3V)
18
Max output current (+5V)
17
Max output current (-12V)
0.3
Max output current (+5Vsb)
2.5
Max output current (+12V1)
38
